IEC Class IIIA 5mw Standard 8mm 650nm Red Dot Laser Module Industrial Grade APC Driver

$9.90

SKU: 32916460014 Category:

Description

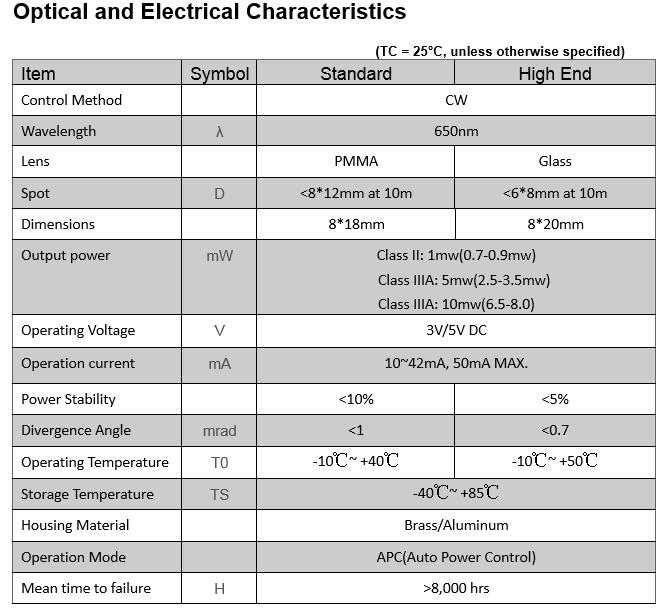

spec

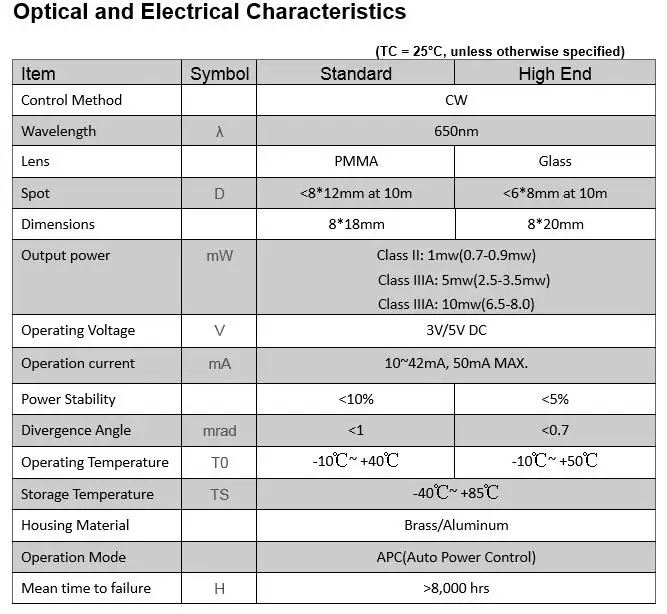

spec1

 Application

  Industrial areas / Medical / Biochemical / Laser Tag

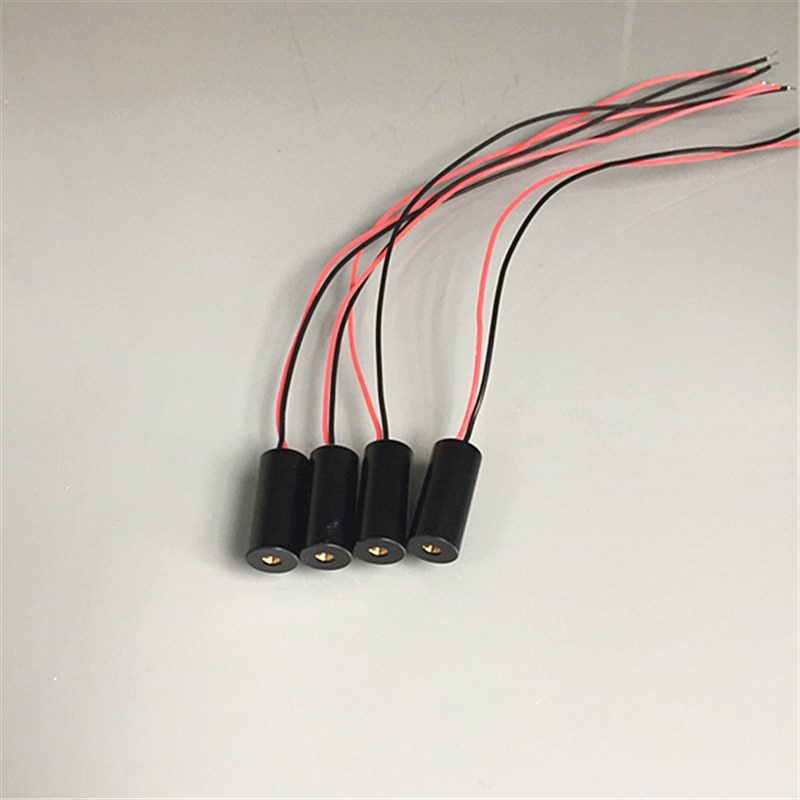

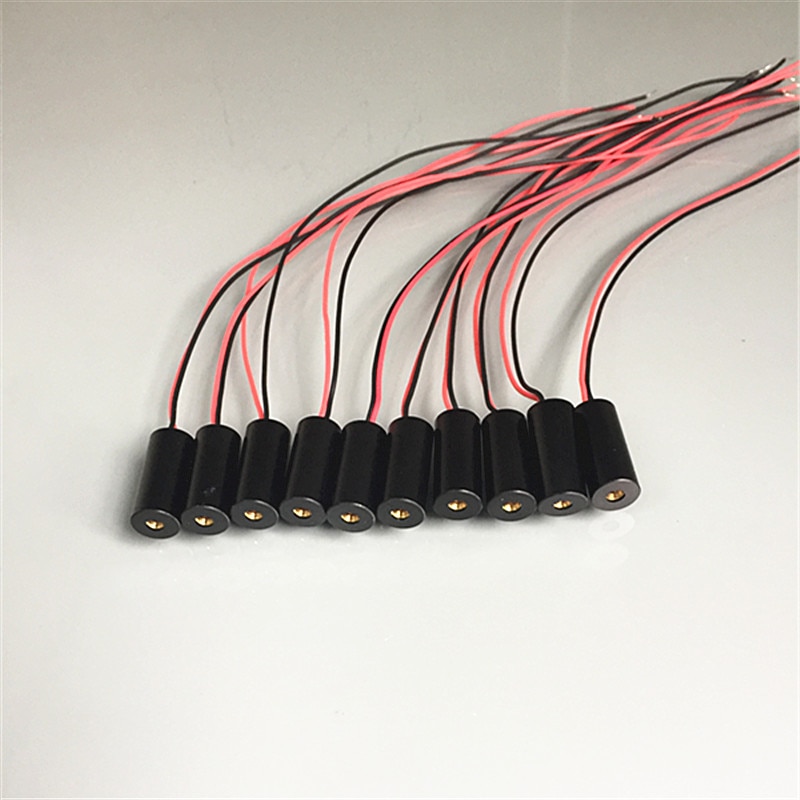

 Item Pictures
650nm red (2)
Cstomized Laser Moudle
laser-modules-photo02

Any part or specification of each module can be modified.

We divide a laser diode module structure into 4 main sections:

– a laser diode
– an optical lens
– a laser driver circuit
– optical and mechanical properties

laser-modules-photo03

1. Laser diode:

-Main characteristics of laser diode: wavelength, output power, and operating temperature

laser-modules-photo04

2. Optical Lens:

– Main characteristics for the beam collimation: divergence angle, laser spot size

– Choice of the laser pattern: laser dot, laser line, laser cross line, or any kind of laser pattern achieved through using DOE

DOE

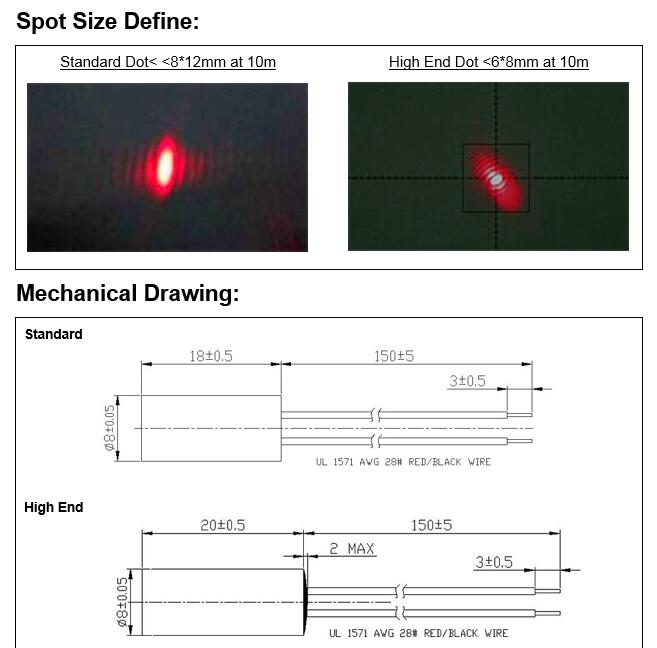

Spot size:  The laser spot size has a direct relationship to the distance of projection.

    laser-modules-photo06

3. Laser Driver Circuit:

The driving circuit of the laser modules can be either APC (Auto Power Control) or ACC (Auto Current Control).

An APC driver controlled laser module will automatically adjust the input current in order to output a constant value of optical power.

An ACC driver controlled laser module will in another way have a constant value of input current, while the output power may vary.

4. Optical and mechanical properties:

-Main characteristics for mechanical requirements: dimension requirements, boresight or called coaxial angel accuracy of laser module.
laser-modules-photo08
