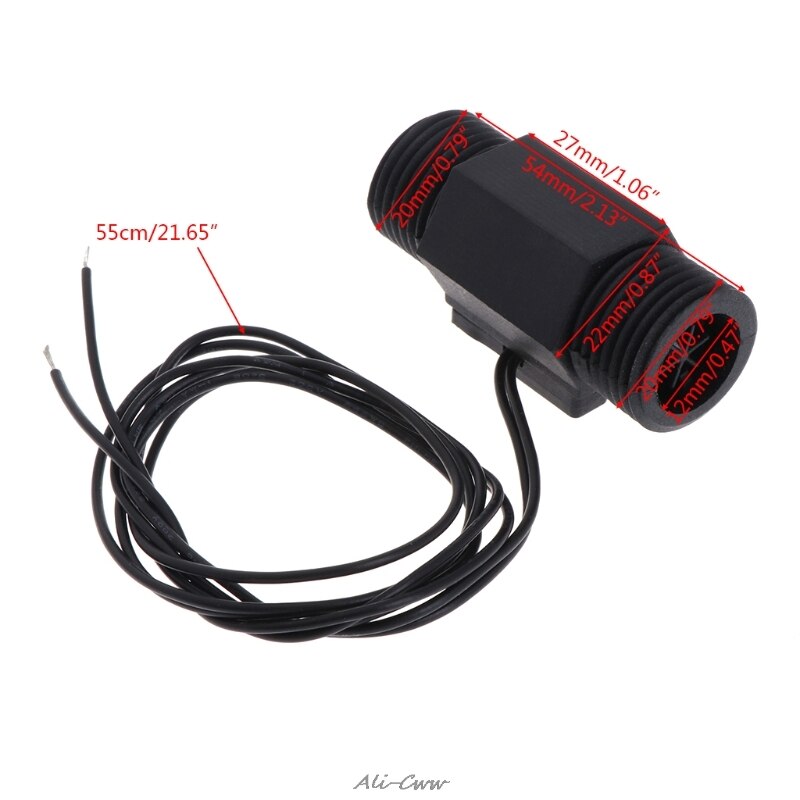

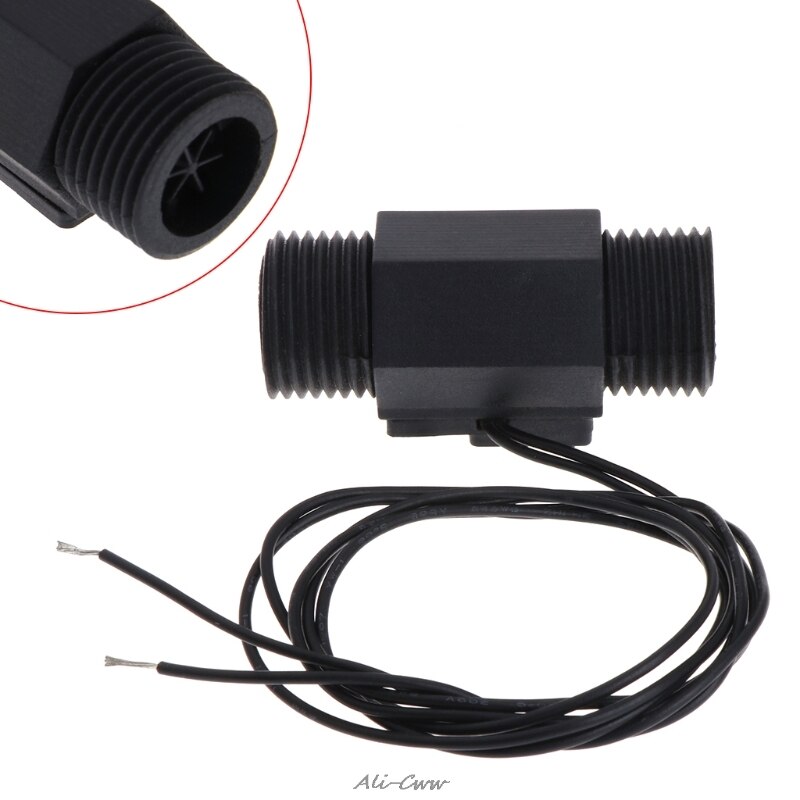

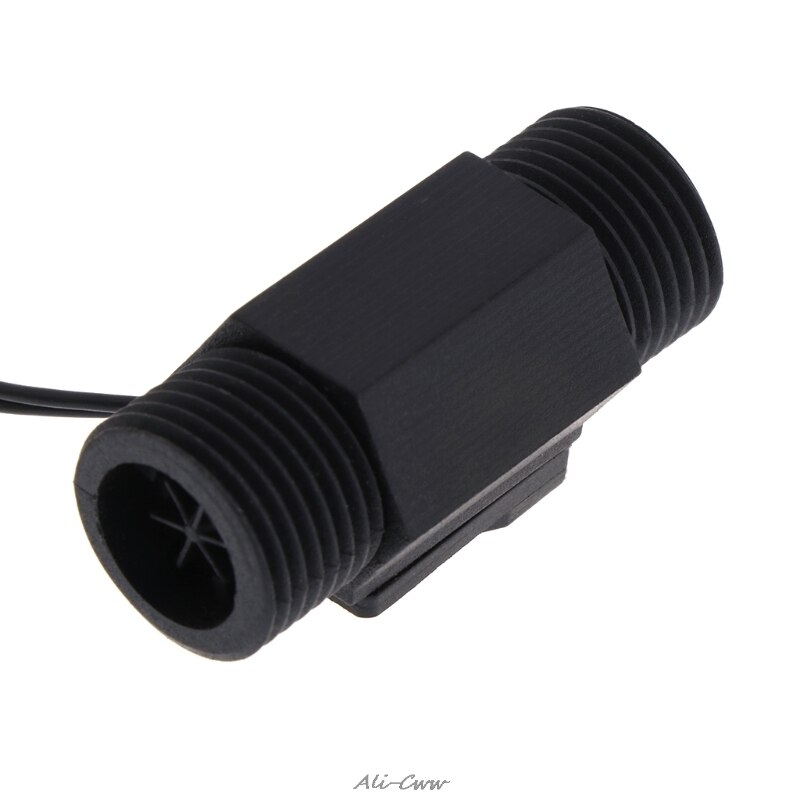

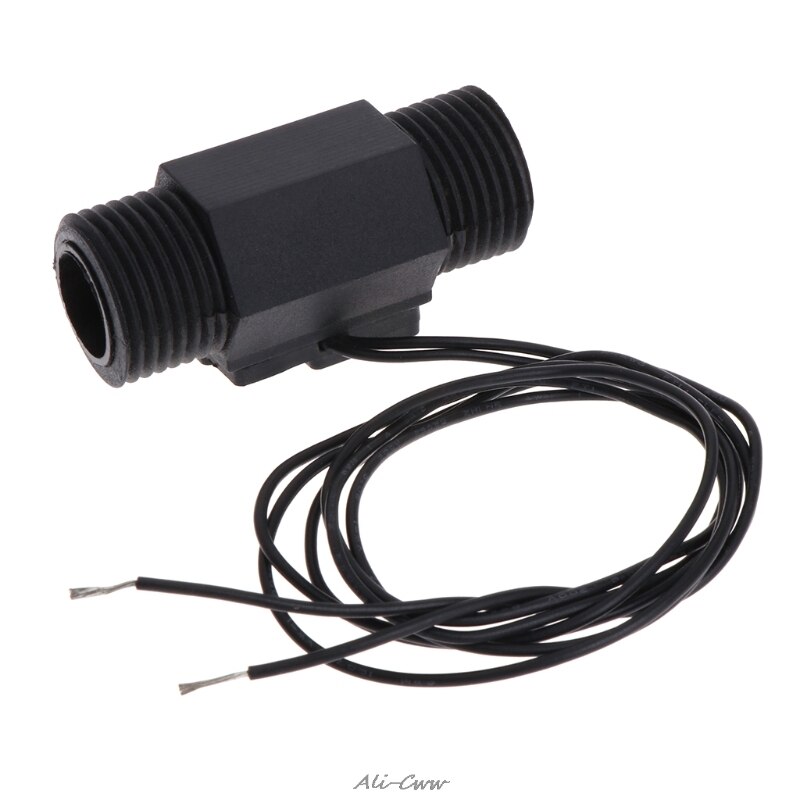

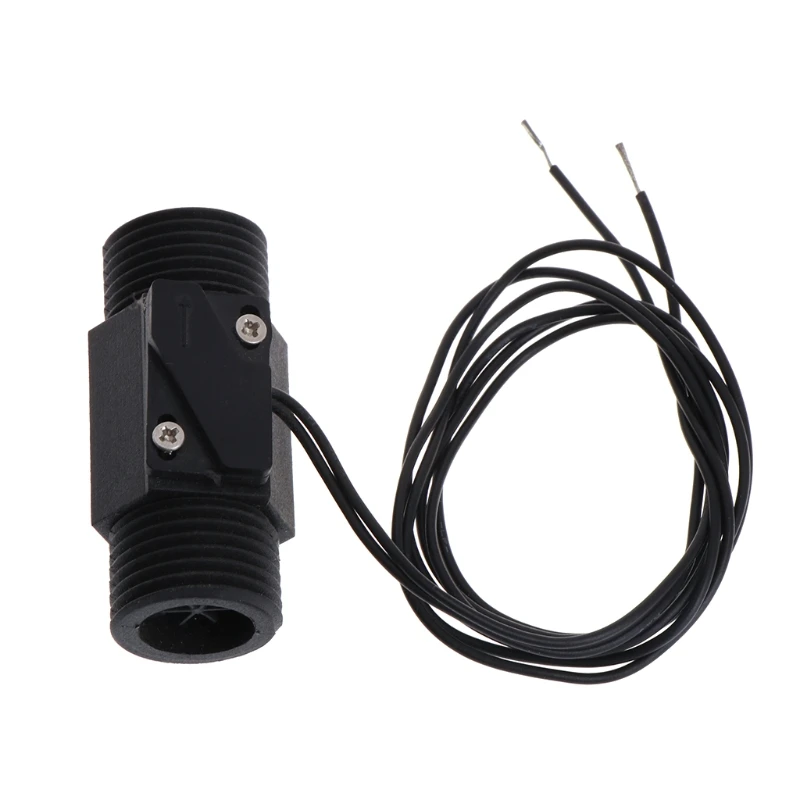

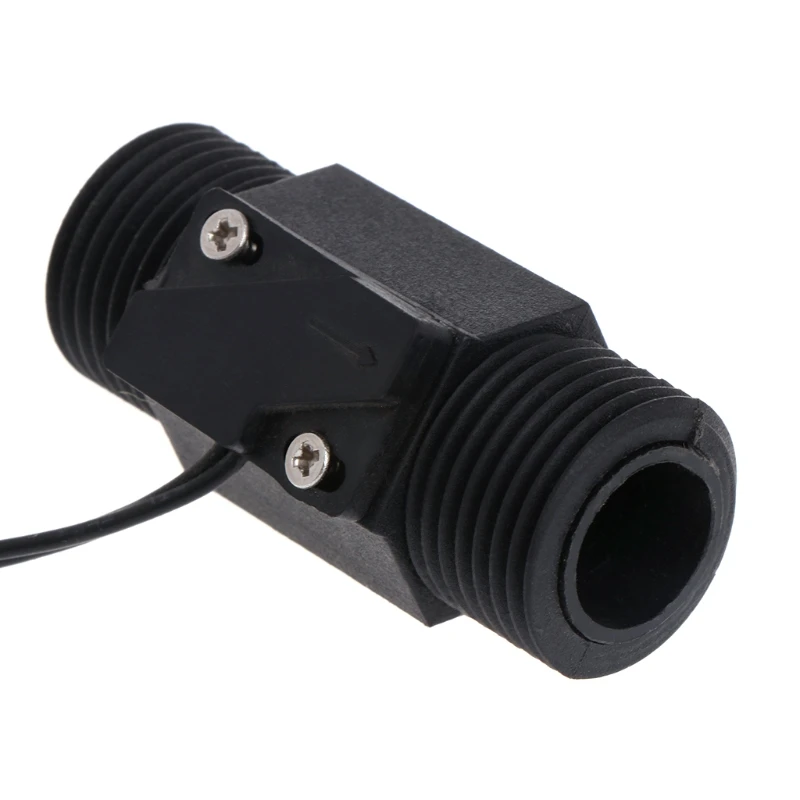

Magnetic Plastic Water Flow Sensor Switch G1/2 for laser welding cutting machine


SKU: 32904497968 Category:



1. Magnetic water flow switch
2. Low cost flow switch.
3. Long life, excellent performance flow sensor.
4. No Standby power requirement.
5. Excellent performance.
Suitable ambient temperature ≥1°C
Suitable working temperature ≤100°C
Minimum starting flow ≥ 0.75L/min
The maximum flow rate ≤5L/min
Rated working pressure ≤ 0.65Mpa
The maximum pressure of the shell ≤ 1.5Mpa
Signal output load DC24V/1A, AC36V/1A or AC220V/0.1A
Adaptation scope and conditions:
(1) The ambient temperature is not lower than 0°C. Do not beat the shell. Keep away from magnetic objects.
(2) The output of the signal is a switch, so the connection method of the control object must also be a switch control relationship.
(3) The power of the control object must not be greater than the signal load capacity.
(4) This device is a water medium control device and cannot be used for other media control.
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package include:
1 * Plastic Water Flow Sensor Switch
