• The VL53L0X is a new generation Time-of-Flight (ToF) laser-ranging module housed in the smallest package on the market today, providing accurate distance measurement whatever the target reflectances unlike conventional technologies. It can measure absolute distances up to 2m, setting a new benchmark in ranging performance levels, opening the door to various new applications.
• The VL53L0X integrates a leading-edge SPAD array (Single Photon Avalanche Diodes) and embeds ST’s second generation FlightSenseTM patented technology.
• The VL53L0X’s 940nm VCSEL emitter (Vertical Cavity Surface-Emitting Laser), is totally invisible to the human eye, coupled with internal physical infrared filters, it enables longer ranging distance, higher immunity to ambient light and better robustness to cover-glass optical cross-talk.
• Key Features
• Fully integrated miniature module
  940nm Laser VCSEL
  VCSEL driver
  Ranging sensor with advanced embedded micro controller
  Fast, accurate distance ranging
  Reported range is independent of the target reflectance
  Operates in high infrared ambient light levels
  Advanced embedded optical cross-talk compensation to simplify cover glass selection
  Eye safe
  Class 1 laser device compliant with latest standard IEC 60825-1:2014 – 3rd edition
  Easy integration
  Single reflowable component
  No additional optics
  Single power supply

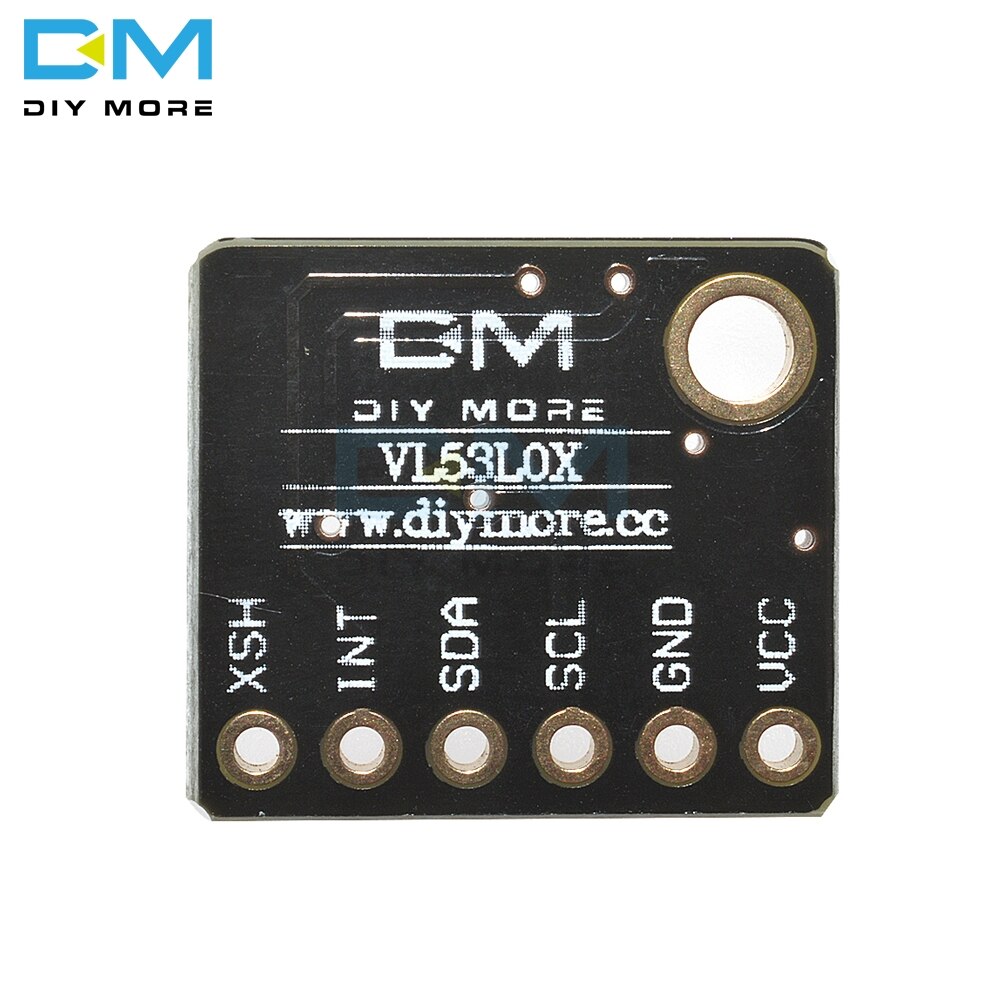

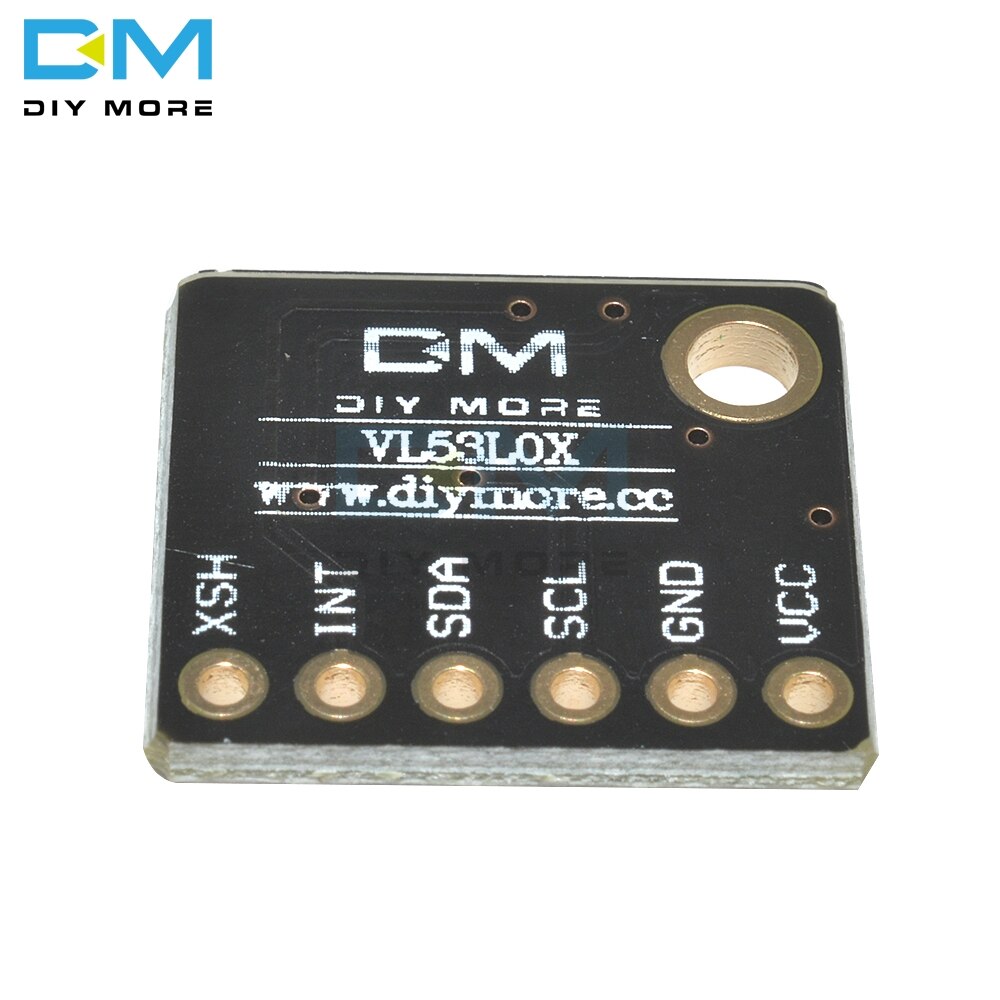

  I2C interface for device control and data transfer
  Xshutdown (Reset) and interrupt GPIO
  Programmable I2C address

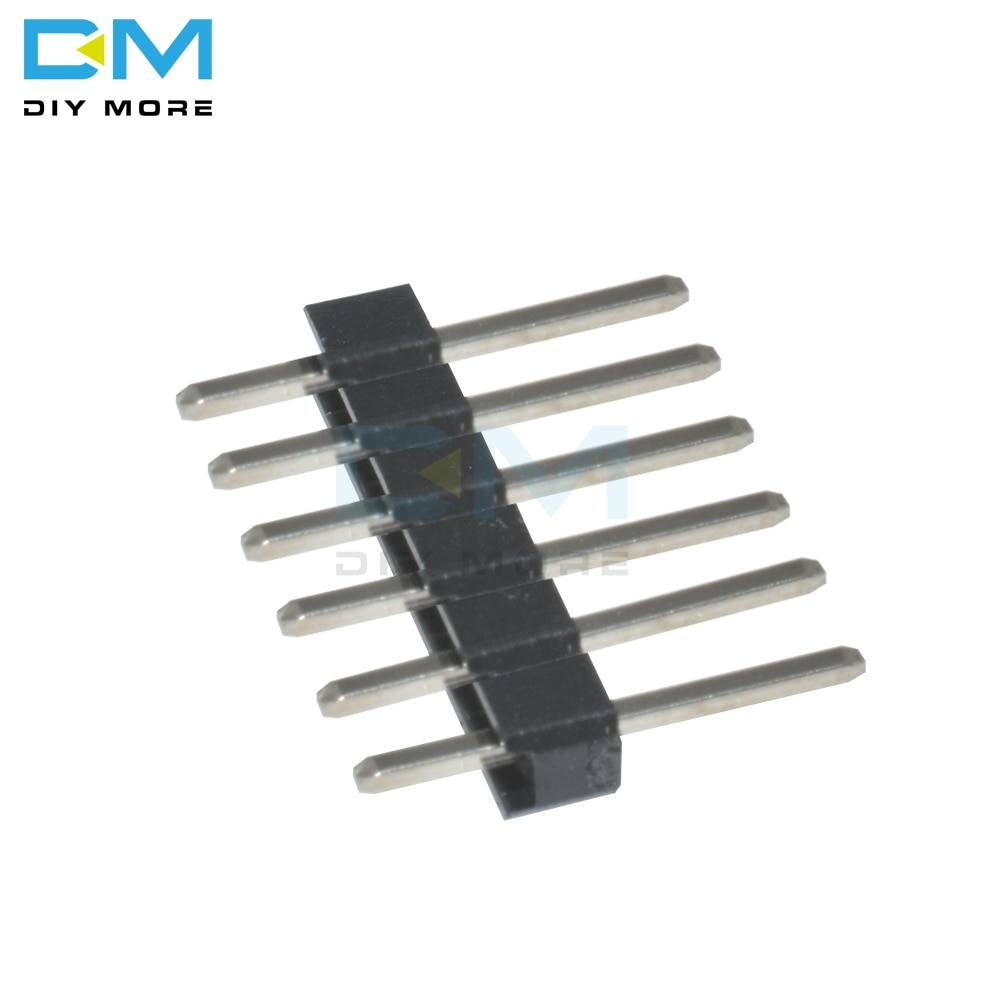

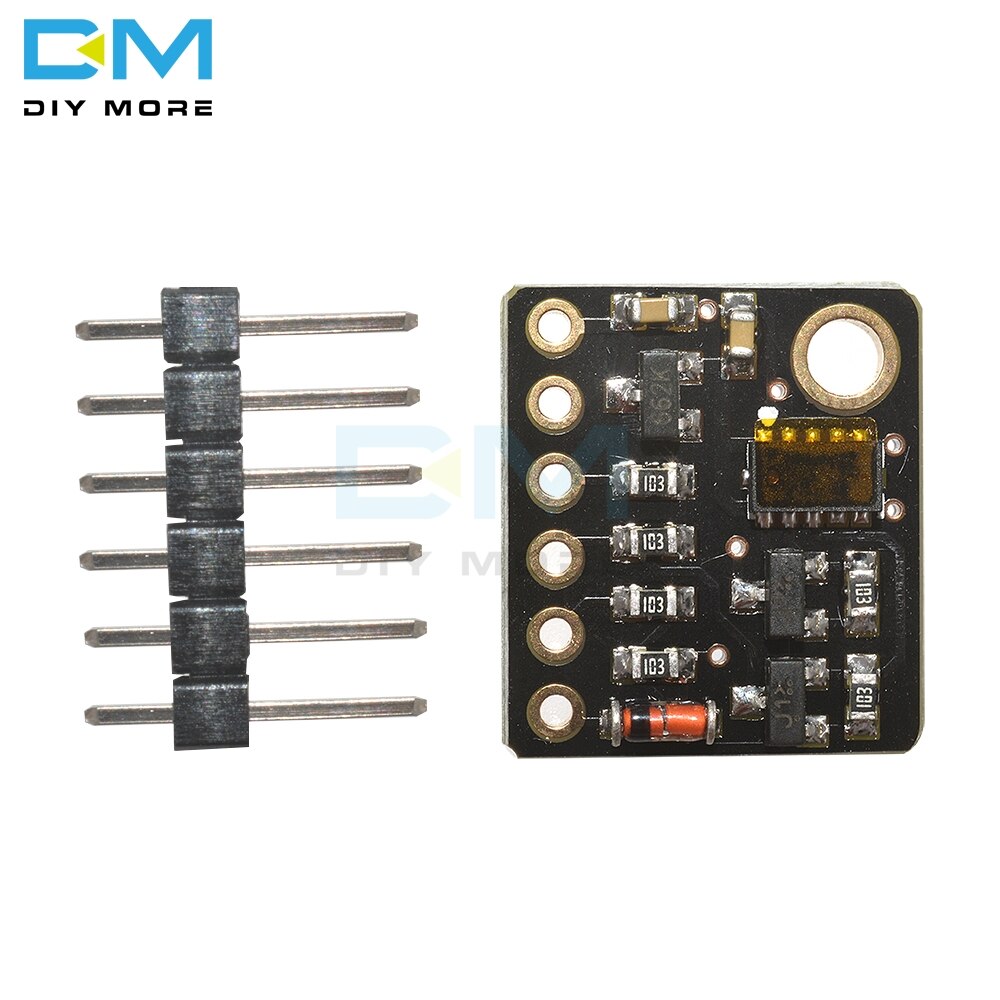

Package included:

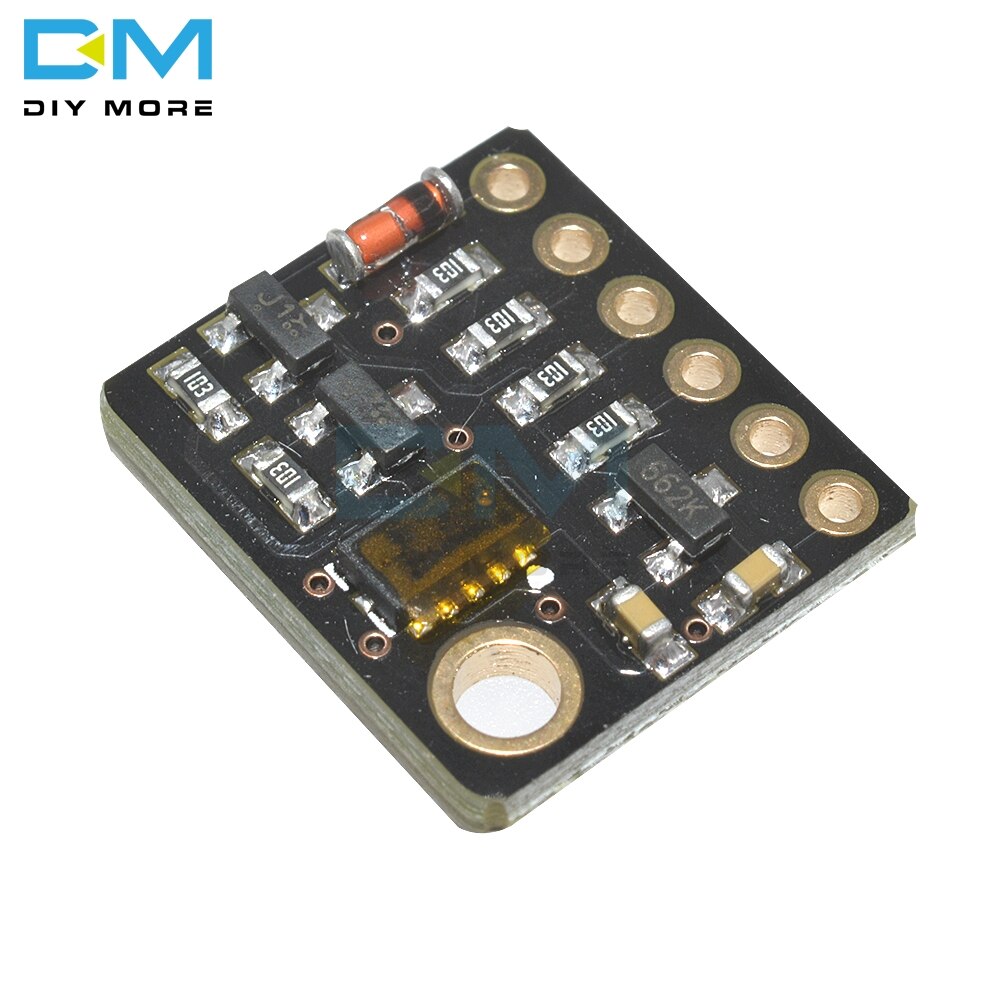

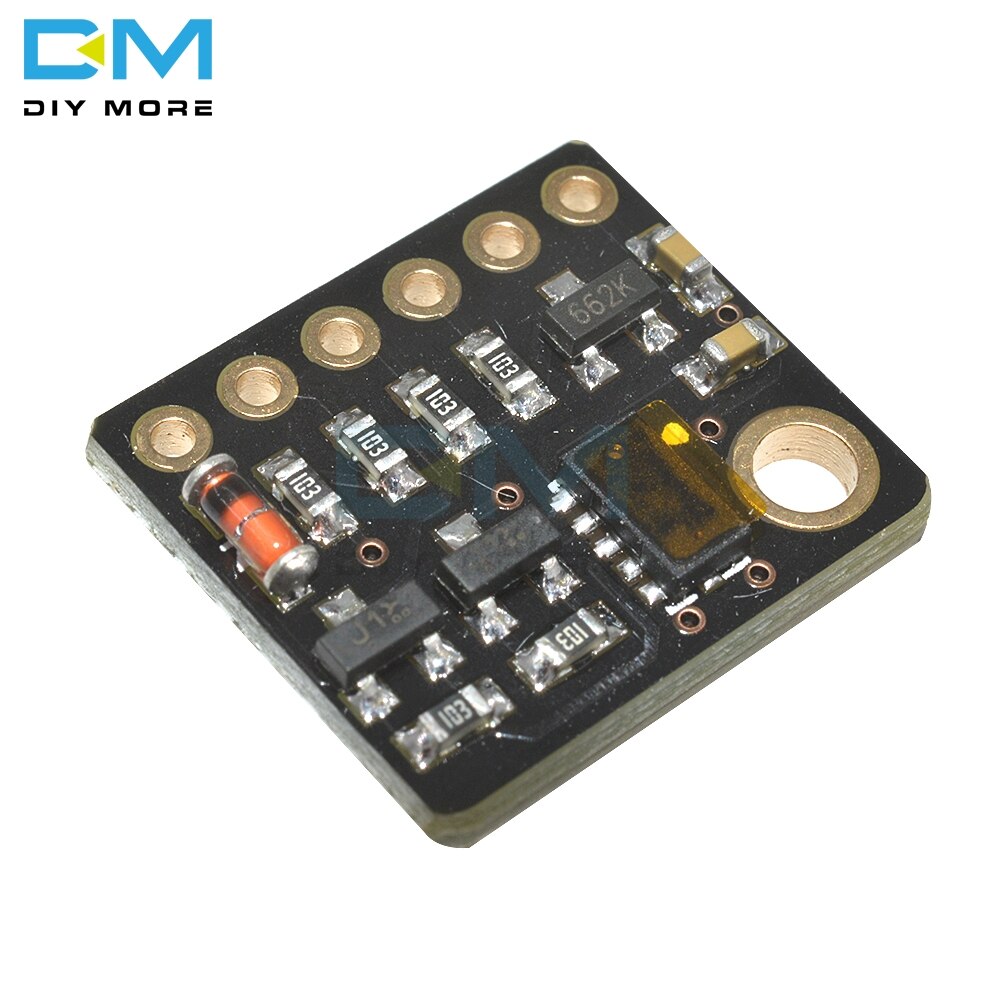

1*I2C IIC VL53L0X Time-of-Flight ToF Ranging Sensor 940nm Laser Distance Module
