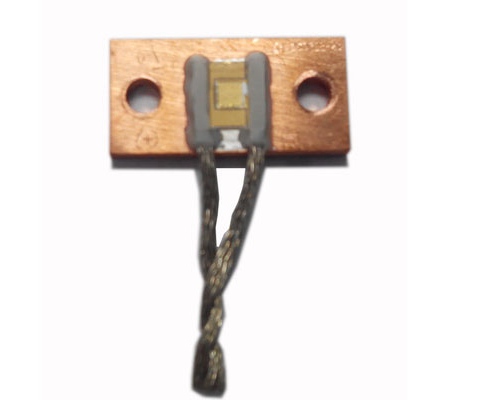

808nm 7W CW VCSEL Array Laser Diode LD for Laser Illumincation Civil Purpose

The vertical-cavity surface-emitting laser, or VCSEL, is a type of semiconductor laser diode with laser beam emission perpendicular from the top surface, contrary to conventional edge-emitting semiconductor lasers (also in-plane lasers) which emit from surfaces formed by cleaving the individual chip out of a wafer. VCSEL applications include fiber optic communications, precision sensing, computer mice and laser printers.

PRODUCT FEATURES
808nm Multimode VCSEL
High Efficiency (WPE), >35% @50C
Oxide Isolation Technology
Modulation bandwidth >1Gbps
APPLICATIONS

3D Imaging
Gesture Recognition
Laser Illumincation
Medical applications
Broadband acesss nework
Pump

laser illuminator civil purpose

I. Absolute Maximum Ratings

Storage Temperature：-40 to +85°C
Case Operating Temperature：0 to 60°C
Relative Humidity：5% to 90%
Reverse Power Supply Voltage：5V
Maximum continuous forward current：10A
ESD Exposure (Human Body Model：1KV1

Notice
Stresses greater than those listed under “Absolute Maximum Ratings”may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operations section for extended periods of time may affect reliability.

Notice
The inherent design of this component causes it to be sensitive to electrostatic discharge (ESD). To prevent ESD-induced damage and/or degradation to equipment, take normal ESD precautions when handling this product
