High Power Multiple Bule Laser Diodes(LD) Nichia NUBM07E 465nm 8*2.9W

$399.00

Description

High Power Multiple Bule Laser Diodes(LD) Nichia NUBM07E 465nm 8*2.9W

High Power Multiple Bule Laser Diodes(LD) NUBM07 465nm 8*2.9W

Features:

High Power Multiple Laser Diode (LD) Bank
8 Collimator Beams
No Outgas
High Heat Dissipation
High safety structure for prevention of removing LDs

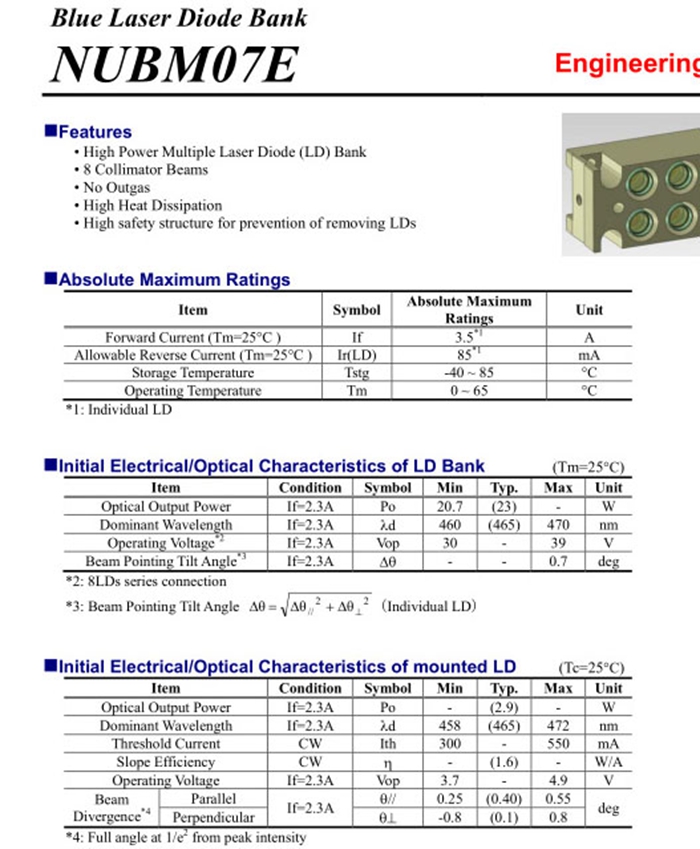

Absolute Maximum Ratings:

Forward Current(Tm=25℃):3.5A
Allowable Reverse Current(Tm=25℃):85mA
Storage Temperature:-40~85℃
Operating Temperature: 0 ~65℃

Initial Elecrical/Optical Characteristics of LD Bank:

Optical Output Power: 20.7w
Dominant Wavelength: 460~470nm
Operating Voltage: 30~39v
Beam Pointing Tilt Angle: 0.7deg

Initial Elecrical/Optical Characteristics of mounted LD:

Dominant Wavelength: 468~472nm
Threshold Current: 300 ~550.nm
Operating Voltage: 3.7~4.9 v
Beam Divergence: Parallel:0.25~0.55deg, Perpendicular:-0.8 ~ 0.8deg
