976nm 9W Wavelength-Stabilized Fiber Coupled Diode Laser



976nm 9W Wavelength-Stabilized Fiber Coupled Diode Laser

 976nm wavelength
 9W output power
 105µm fiber core diameter
 0.22N.A.  Narrow bandwidth △≦0.7nm
 1040nm-1200nm feedback protection


Pumping of fiber lasers

pumping of ultrafast fiber lasers

Optical Data:

CW-Output Power:9W

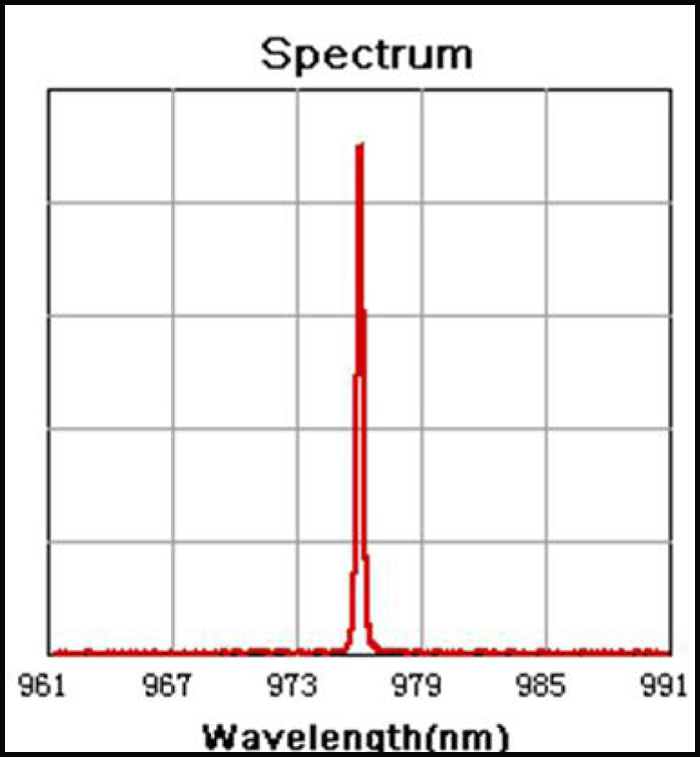

Center Wavelength:976±0.5nm

Spectral Width (FWHM):<0.7nm

Wavelength Shift with Temperature: 0.02nm/℃

Wavelength Shift with Current: 0.03nm/A

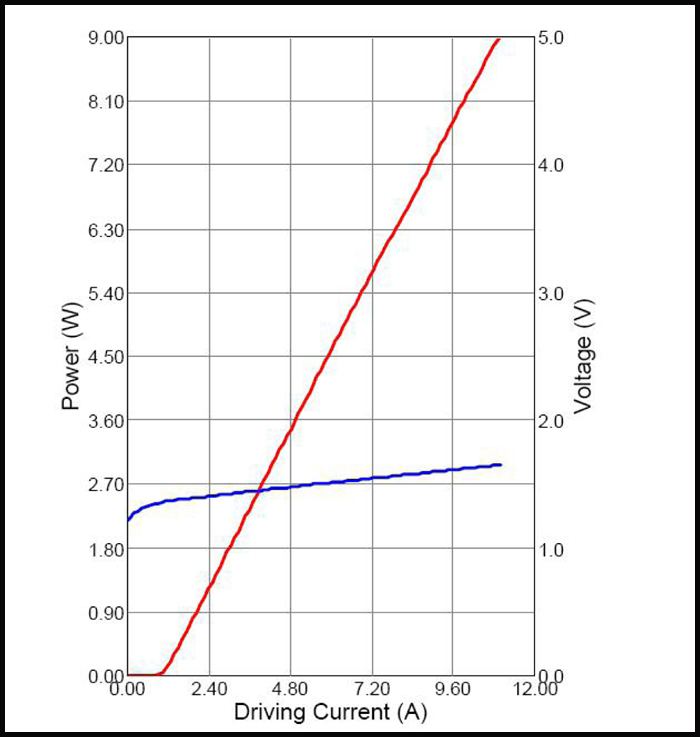

Electrical Data:

Electrical-to-Optical Efficiency:48%

Operating Current:  12~13A

Threshold Current: 0.9A

Operating Voltage:  1.6~2

Slope Efficiency:0.8W/A

Fiber Data:

Core diameter: 105µm

Cladding diameter:125um

Buffer diameter: 250um

Numerical Aperture:0.22

Total Fiber Length:1m

Fiber Loose Tubing Diameter/Length:0.9mm PVC 15cmµm

Minimum Bending Radius:60nm

Fiber termination: None

Feedback Isolation:

Feedback Isolation: 1040~1200nm

Isolation: 30dB


ESD:  500V

Storage Temperature(Non-operating): -20~70

Lead Soldering Temp: 260℃

Lead Soldering Time: 10sec

Operating Case Temperature: 20~30℃

Relative Humidity: 15~75%
