Description

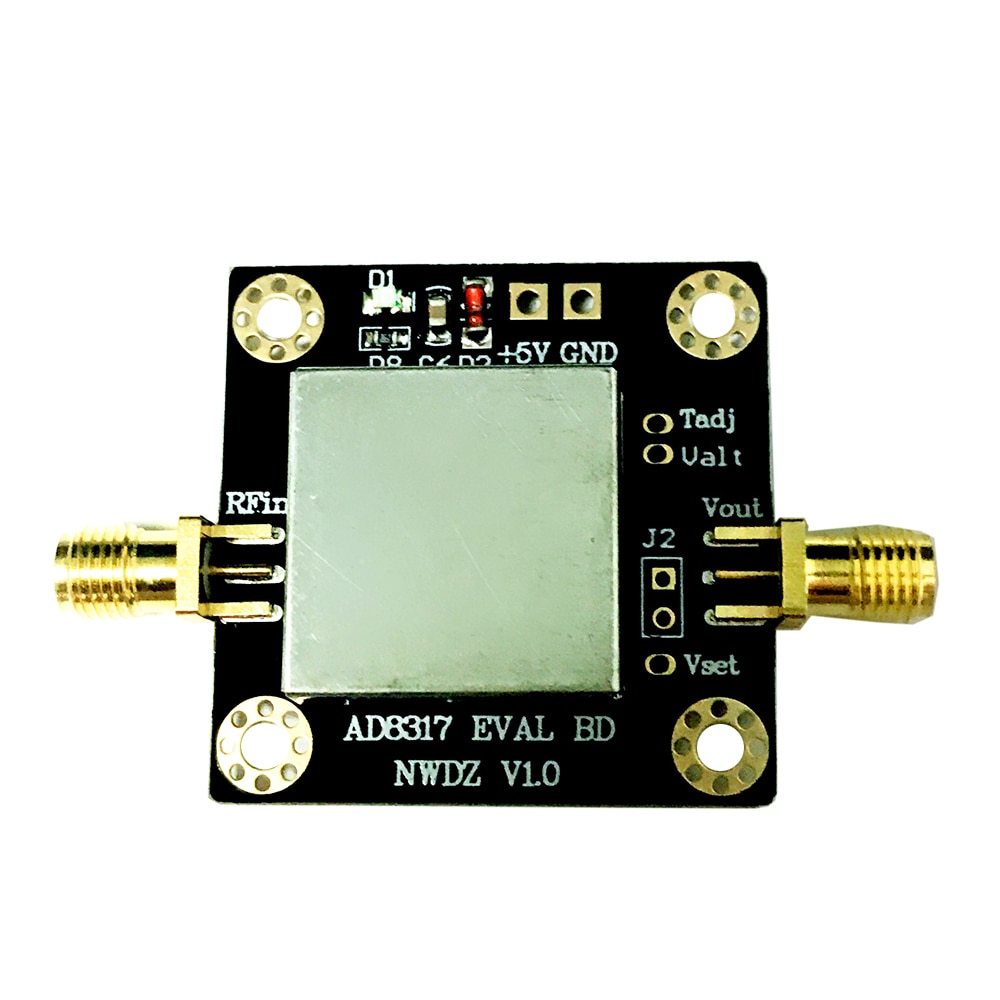

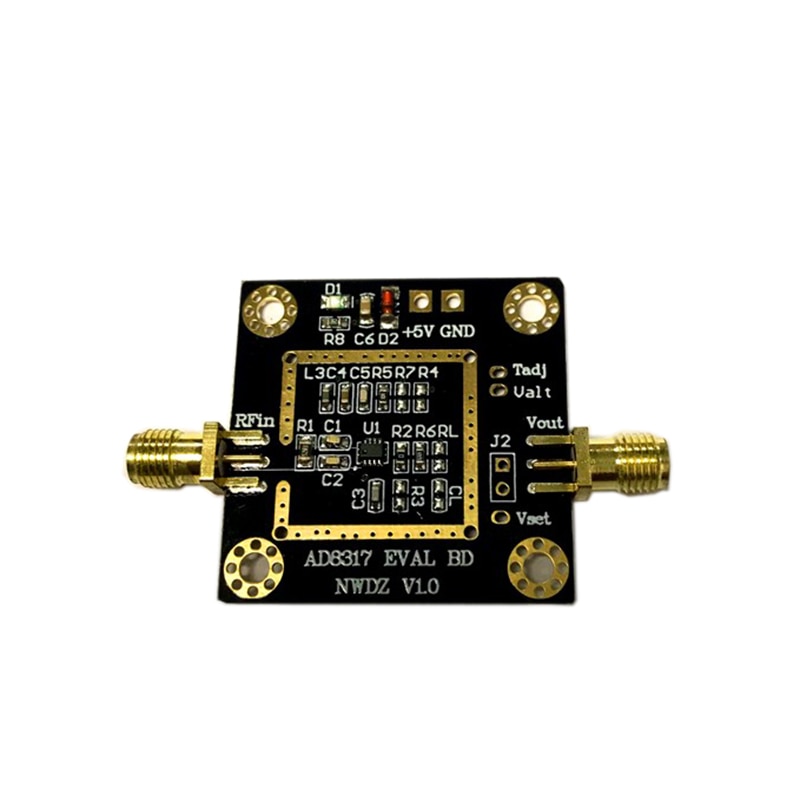

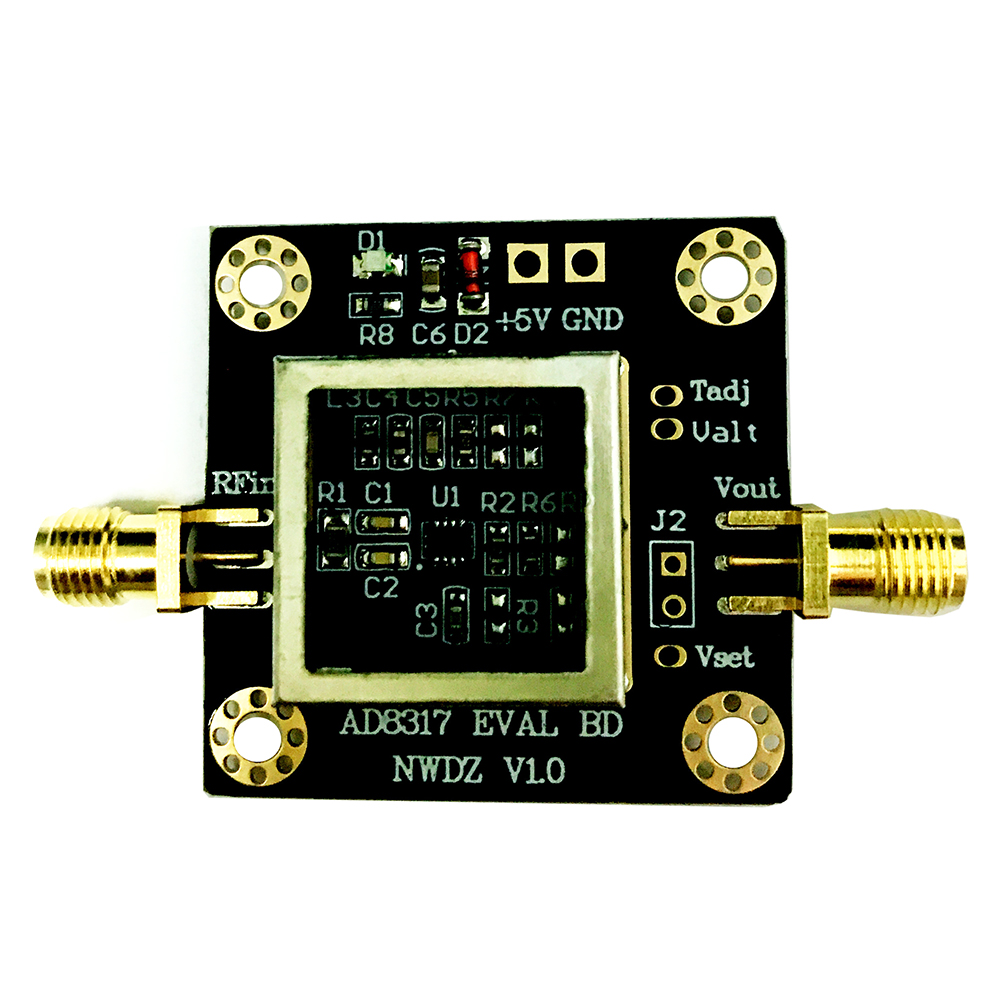

AD8317 1M-10GHz 60DB RF Power Meter Amplifier Logarithmic Detector Controller
- Brand Name: Agoal
- Compatible Brand/Model: None
- With USB: NO
- is_customized: NO
- Model Number: RF
Features:
Input impedance: 50 Ohms
Output impedance: 50 Ohms (video impedance)
Operating frequency Freq: 1MHz ~ 10GHz

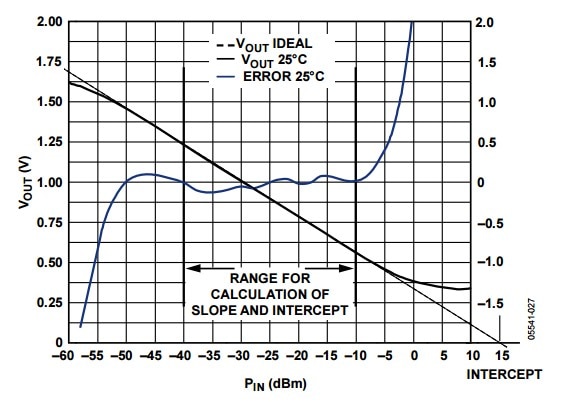

Output voltage range: 1.6 to 0.4V (corresponding to -55 to 0 dBm)
Input and output ratio: ~ -22mV/dBm
Input dynamic range: -60 to +5dBm (high linear dynamic range: -55 to 0 dBm)
Power supply voltage: +3.3~5V.DC 20mA
Provide schematic PDF
Package Contents
100% Brand New
1 x AD8317 Module Power Meter Logarithmic Detector 1M-10GHz 60dB Dynamic
