Description
- Brand Name: wavetopsign
- Origin: CN(Origin)
- Certification: CE
- Shape: Meniscus
- Model Number: USA-D12/18/19/20/25/38.1mm
- Usage: Optical
- Structure: Meniscus
- Material: USA CVD ZnSe
- SKU: WT0119051

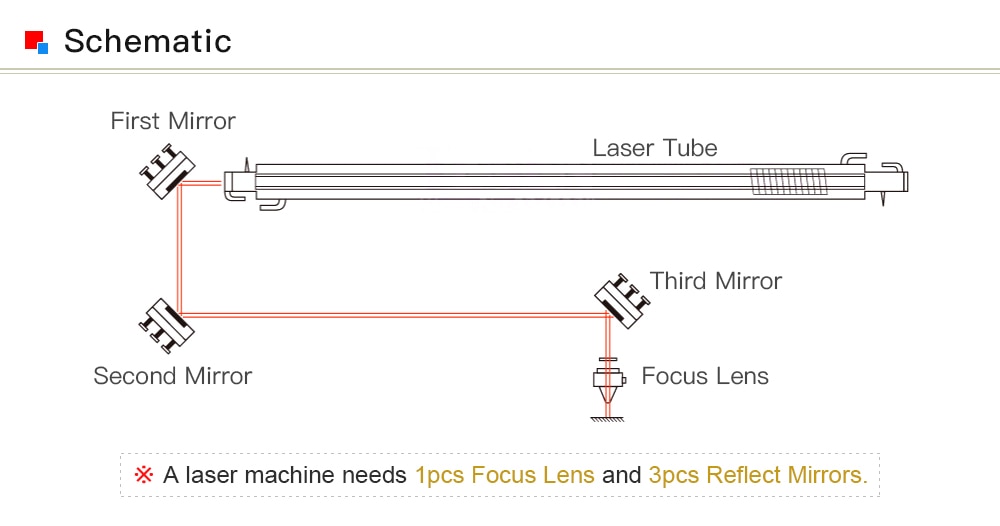

1 Lot (4 Pieces) = 3Pcs Reflective Mirrors + 1Pcs USA Focus Lens

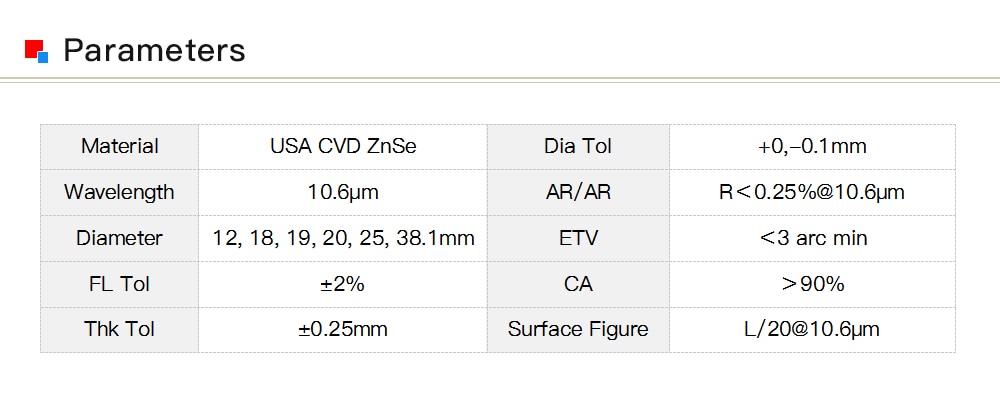

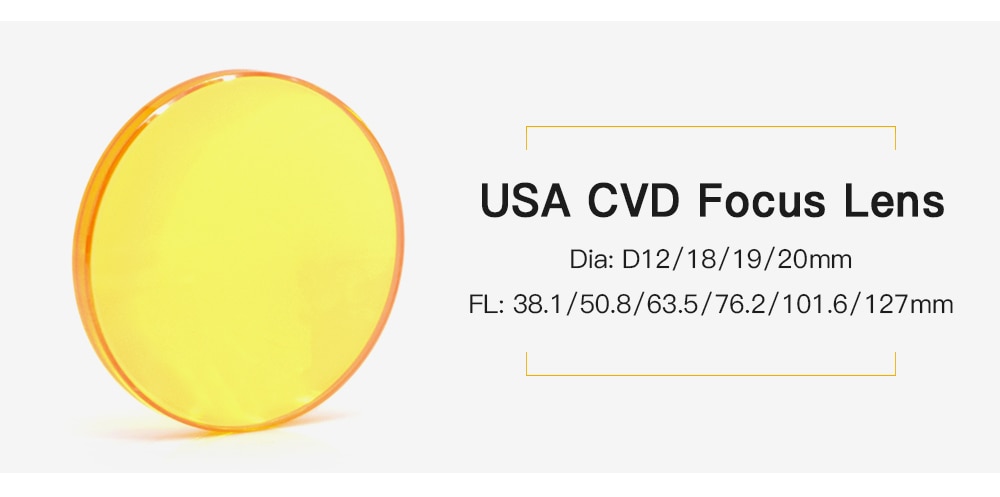

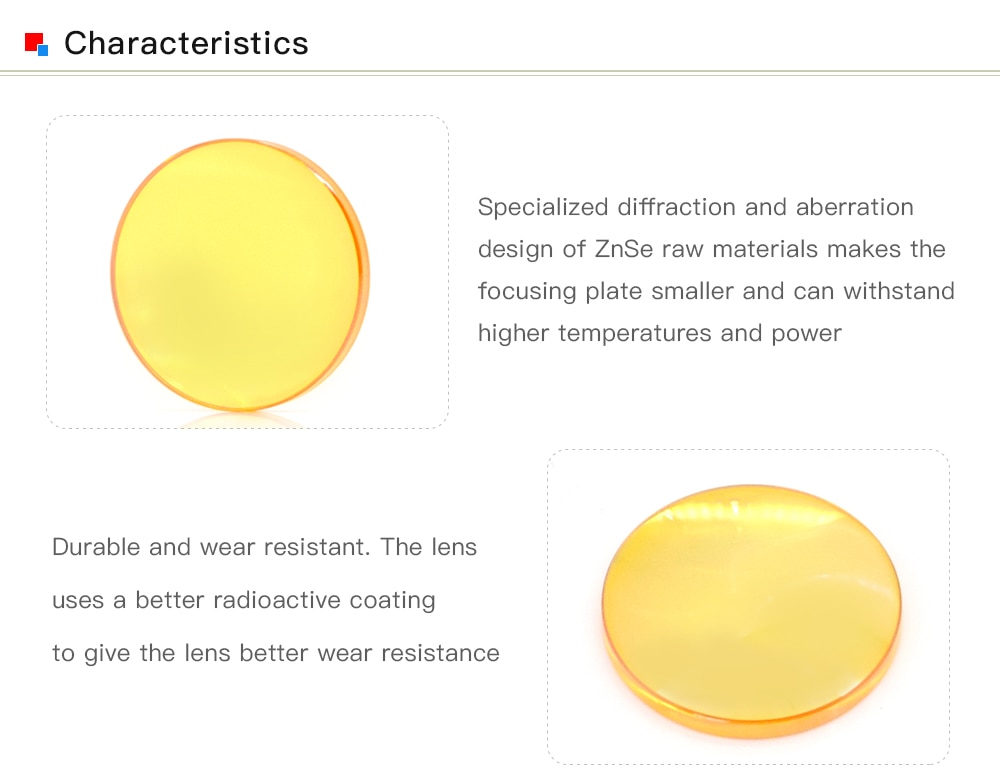

Focus Lens :
Material: USA CVD ZnSe
Diameter: 12 / 18 / 19.05 / 20mm
Focal Length: FL38.1 50.8 63.5 76.2 101.6 127mm

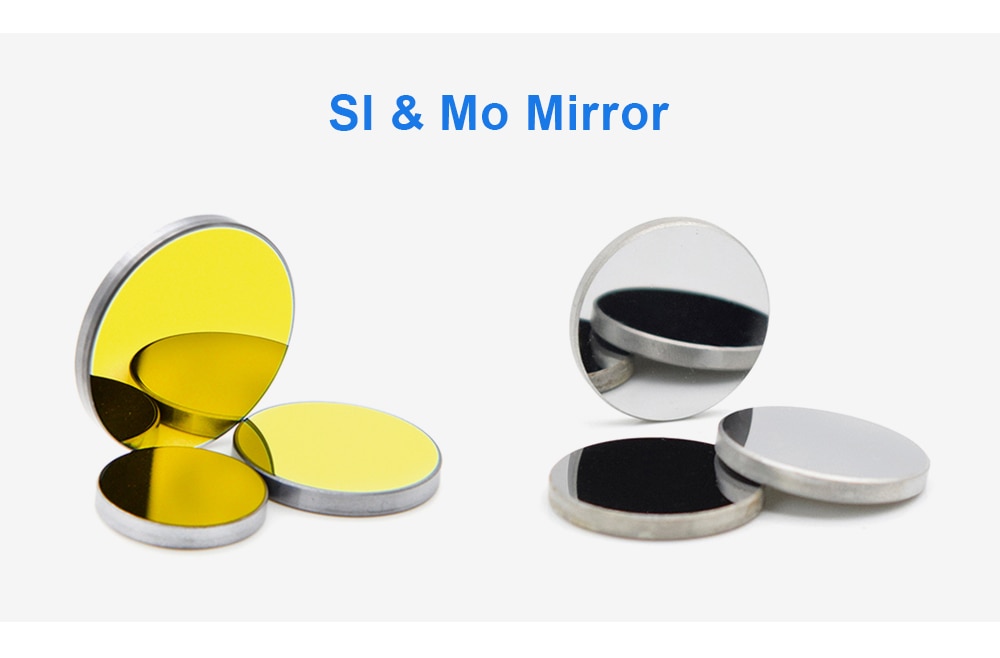

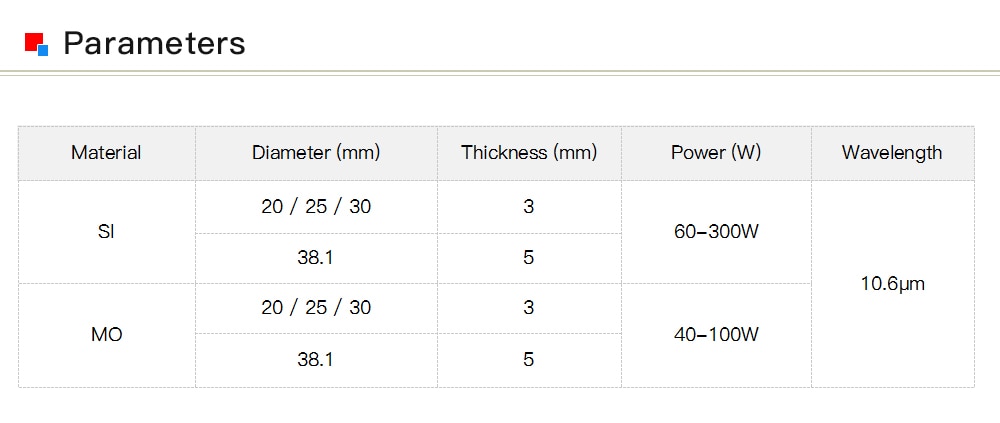

Si / MO Mirrors :
Diameter: 20mm / 25mm
Thickness: 3mm
Features:
* High Efficiency: High temperature Resistance Smaller Focusing Spot Size
* Durable: Double- sided AR coating High transm- ittance 99.5%
* Long Life Time: Not easy to crack Great Scratch Resistance
Si Mirror Features :

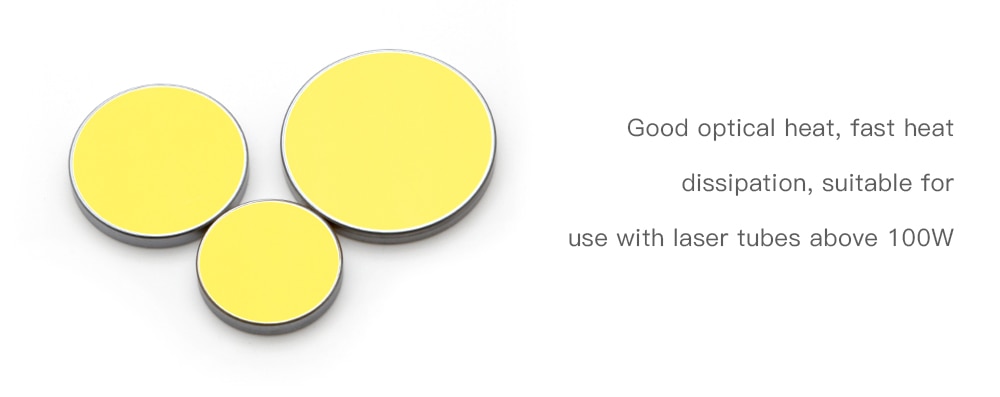

* Good optical heat, fast heat dissipation, suitable for use with laser tubes above 100W
* Gold-plated film, high reflectivity, highest up to 99.9%

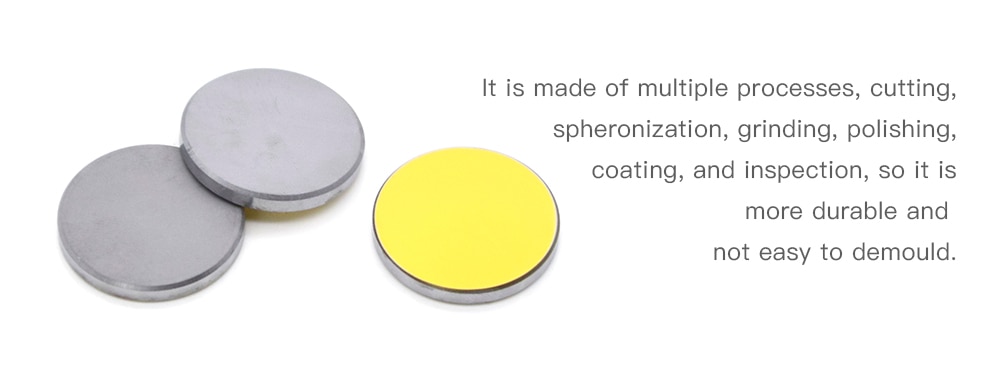

* It is made of multiple processes, cutting, spheronization, grinding, polishing, coating, and inspection, so it is more durable and not easy to demould.
MO Mirror Features :

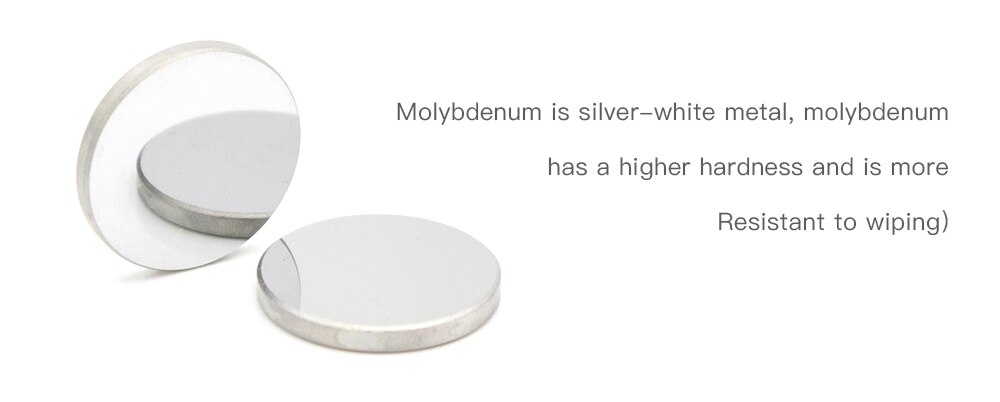

* Molybdenum is silver-white metal, molybdenum has a higher hardness and is more Resistant to wiping
* Molybdenum is a refractory metal with a high melting point, high temperature resistance and corrosion resistance.

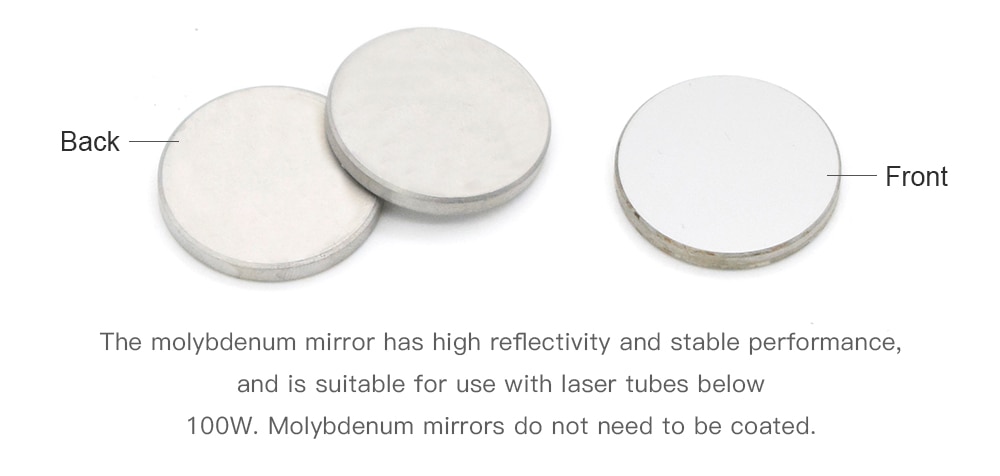

* The molybdenum mirror has high reflectivity and stable performance, and is suitable for use with laser tubes below 100W. Molybdenum mirrors do not need to be coated.
