Green Laser Source 532nm for Sequencing high-speed camera take pictures fluid flow characteristics

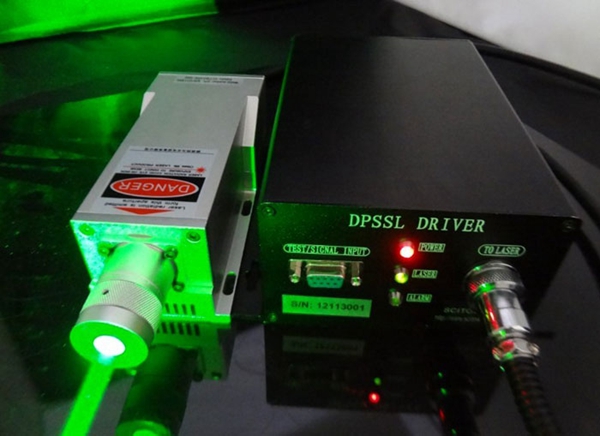

532nm green laser source for Sequencing and similar applications. Continuous-wave Diode-pumped Solid State Laser, CW 532nm laser with high reliability. If you need a pulsed laser, please contact us for more details.

Wavelength: 532nm
Output power: 2.5W – 5W
Transverse mode — TEM00
Operating mode — CWTTL
Power stability RMS ≦3%
M2 factor:≦1.5
Beam divergence mrad ≦1.0
Beam diameter aperture mm ≦3
Light spot roundness: ≧90%
Light spot stability mrad ≦0.05
Spectral linewidth nm ≦0.1
Polarization ratio:≧100:1
Power stability <1% of full power

Electric data

Operating voltage V 12±2 VDC(IMAX:8A)
Average power W ≦50.0
TTL modulation Hz ≦1kHz(05VDC power level signal input)
Analog modulation Hz ≦1kHz(0~5VDC voltage signal input)
Temperature control modeprecision ℃ RS232DP9 TEC doubleaction temperature controller(precision:0.1℃)
Warming-up time min ≦10

Operating temperature ℃ -5℃~+45℃
Operating humidity X% 20~85%RH(No condensation)
Storage temperature ℃ -20℃~+60℃
Storage humidity X% 10~95%RH
Insulating property MΩ ≧100MΩ
Vibration resistance — GBT 2423.43-2008/-15m/s2 5-200Hz
Shock resistance — IEC 60068-2-47:2005/-150 m/s2 11ms
Dielectric strength V ≧2000V
Other data
Expected lifetime hour ≧10000.0
Warranty: 1 year(15 days after the date of delivery )


It can be used for next generation of gene sequencing instruments.It can be focused through a 20x microscope objective into a uniform 25 um line.
