Free Space Optical Modulators AOM at 2000nm Wavelength IR Acousto Optic Modulator

$4,890.00

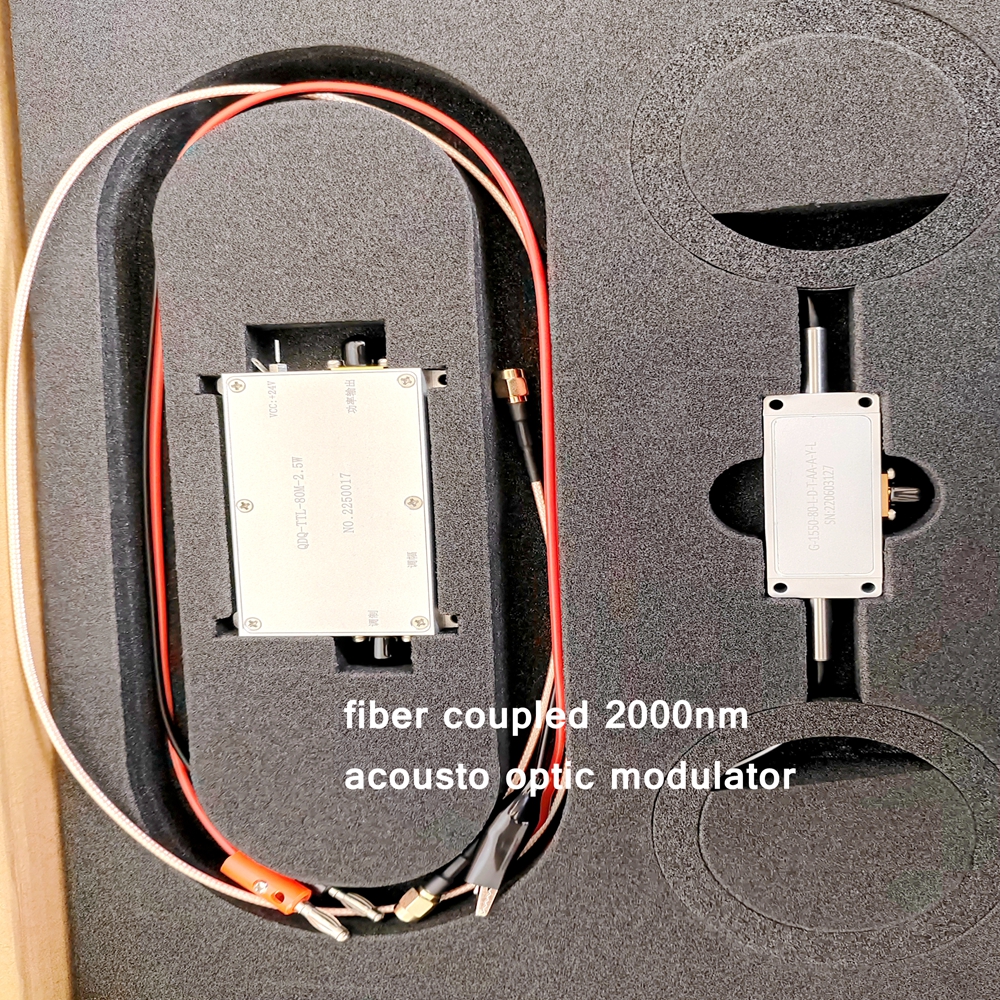

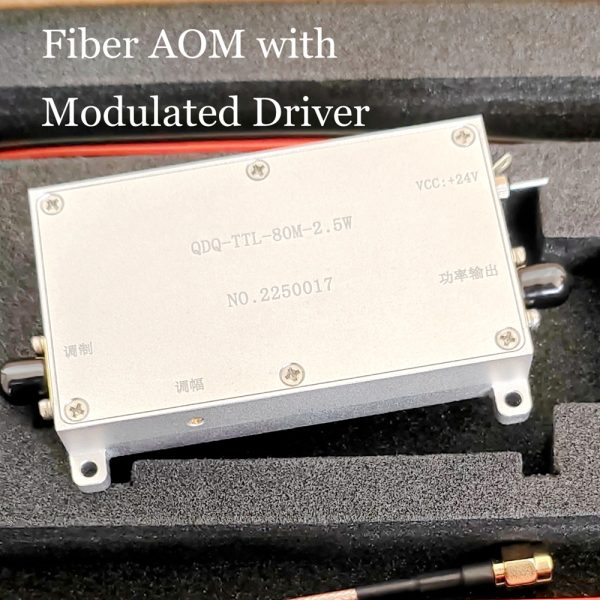

Acousto-optic Modulator IR AOM with Fiber Coupled Pigtail, for wavelength 2000nm laser, Peak Optical Power Pulsed as high as 10kW. Whole Unit for your applications, including Fiber AOM, RF Driver, and the fibers, the power supply plugin.

Description

Free Space or Fiber Coupled Optical Modulators AOM at 2000nm Wavelength IR Acousto Optic Modulator

Features

Low loss
Compact
Stable performance custom configuration cost-effective

Material: TeO2
Wavelength:2000nm
-Frequency(MHz): 100
-Active aperture(mm^2):2
-energy damage threshold(mJ):10 free space
Operating temperature: -20~+60 ℃
Storage temperature: -30~+70℃

Interaction Material:Tellurium dioxide
Signal Wavelength:2000nm (IR AOM)
Operating Wavelength Range:+-30nm
Frequency:80MHz
Ultrasonic Velocity:4200m/s
Insertion Loss:2.5dB
Extinction Ratio(Turn On / Off):55dB
Polarization Extinction Ratio:18dB
Rise-Time/Fall-Time:25ns
Return Loss:40dB
Voltage Standing Wave Ratio (VSWR): 1.5:1
Average Optical Power:0.5W
Peak Optical Power (Pulse): 1kW
Input impedance:50
RF Power:2.5W
Device Interface:SMA Fiber
Fiber Length:1m
Fiber Connector:FC/APC
Operating Temperature℃:20 ~ +60
Storage Temperature℃:30 ~ +70
