808nm 5W CW VCSEL Array LD Laser Diode for Laser Illumincation Civil purpose

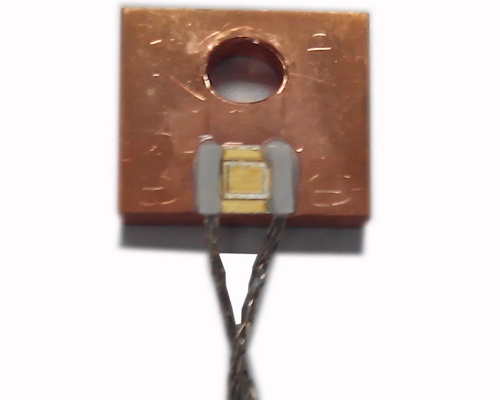

808nm 5W CW VCSEL Array LD Laser Diode

The vertical-cavity surface-emitting laser, or VCSEL, is a type of semiconductor laser diode with laser beam emission perpendicular from the top surface, contrary to conventional edge-emitting semiconductor lasers (also in-plane lasers) which emit from surfaces formed by cleaving the individual chip out of a wafer. VCSEL applications include fiber optic communications, precision sensing, computer mice and laser printers.

808nm Multimode VCSEL
High Efficiency (WPE), >35% @50C
Oxide Isolation Technology
Modulation bandwidth >1Gbps

3D Imaging
Gesture Recognition
Laser Illumincation
Medical applications
Broadband acesss nework

for laser illuminator for civil purpose.

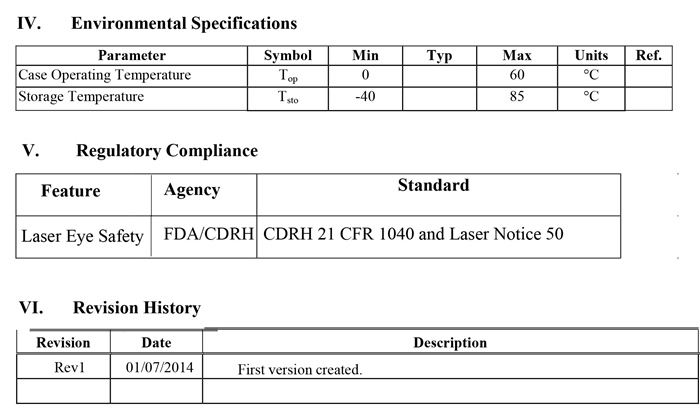

I. Absolute Maximum Ratings
Storage Temperature: -40 to +85°C
Case Operating Temperature: 0 to 60°C
Relative Humidity 5% to 90%: 5% to 90%
Reverse Power Supply Voltage: 5V
Maximum continuous forward current: 6A
ESD Exposure (Human Body Model): 1KV1
Stresses greater than those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operations section for extended periods of time may affect reliability.
The inherent design of this component causes it to be sensitive to electrostatic discharge (ESD). To prevent ESD-induced damage and/or degradation to equipment, take normal ESD precautions when handling this product

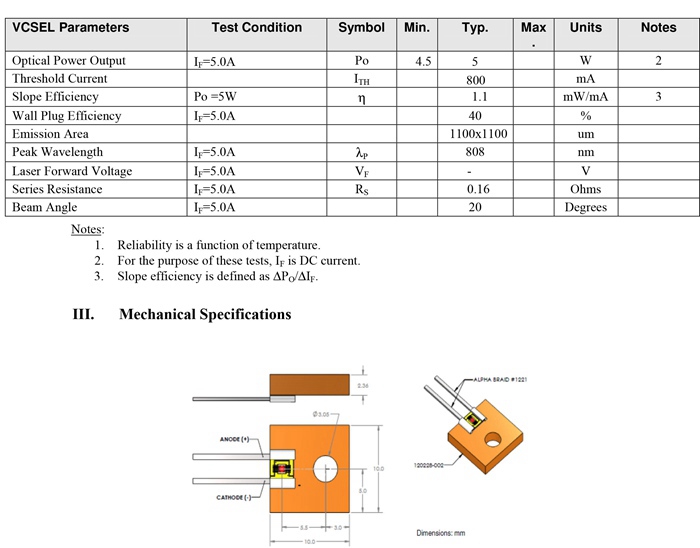

Please kindly check the datasheet:  808nm 5W CW VCSEL Laser Diode
