Description
- Brand Name: laserlands
- Certification: None
- Origin: CN(Origin)
- Style: Mini
- Power: 100W
- Model Number: 3350 housing
- Voltage: 100V
- Occasion: Home Entertainment

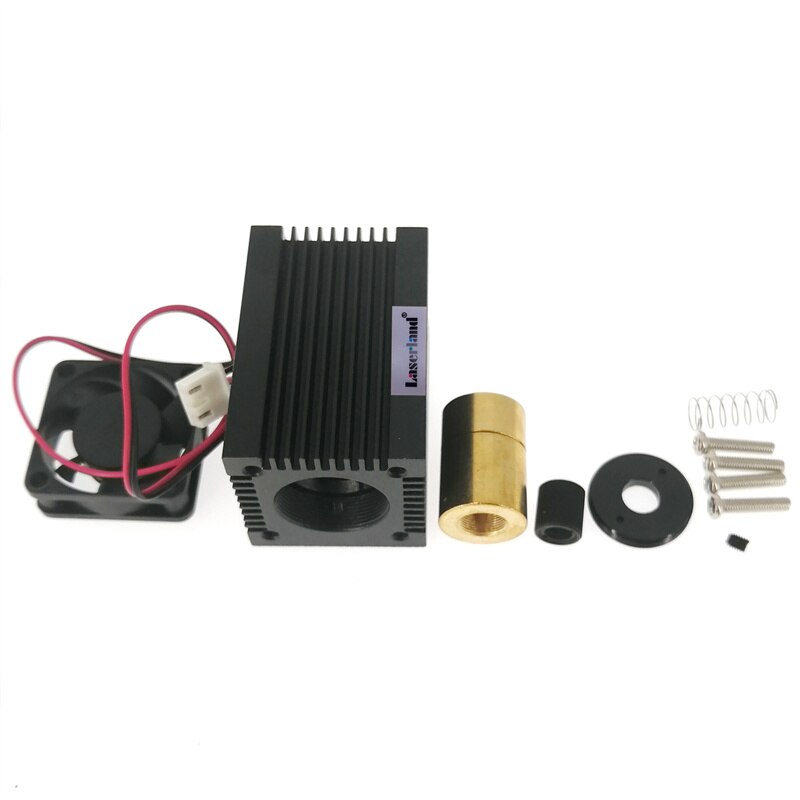

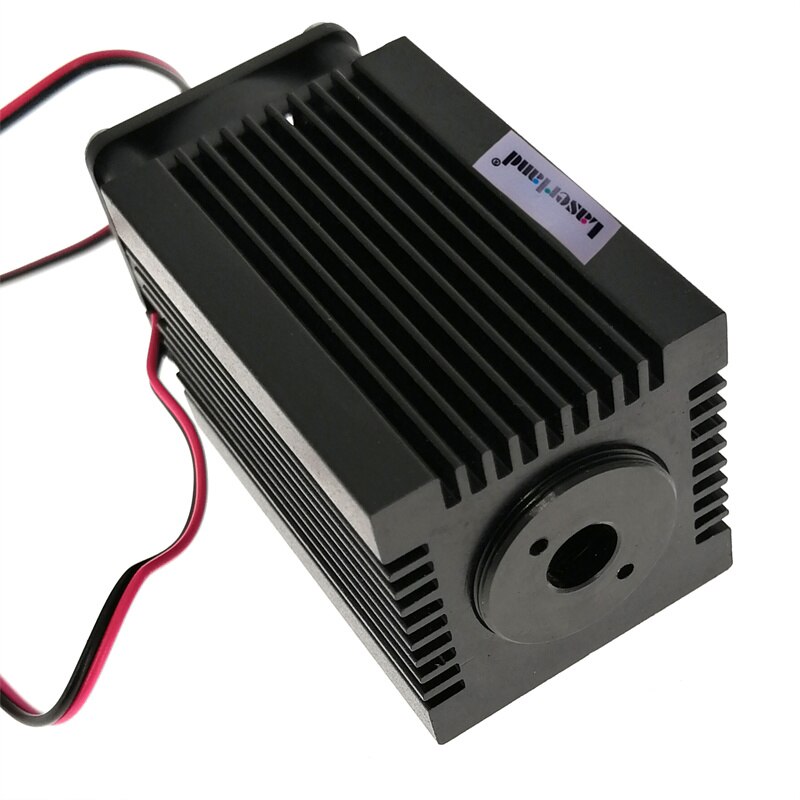

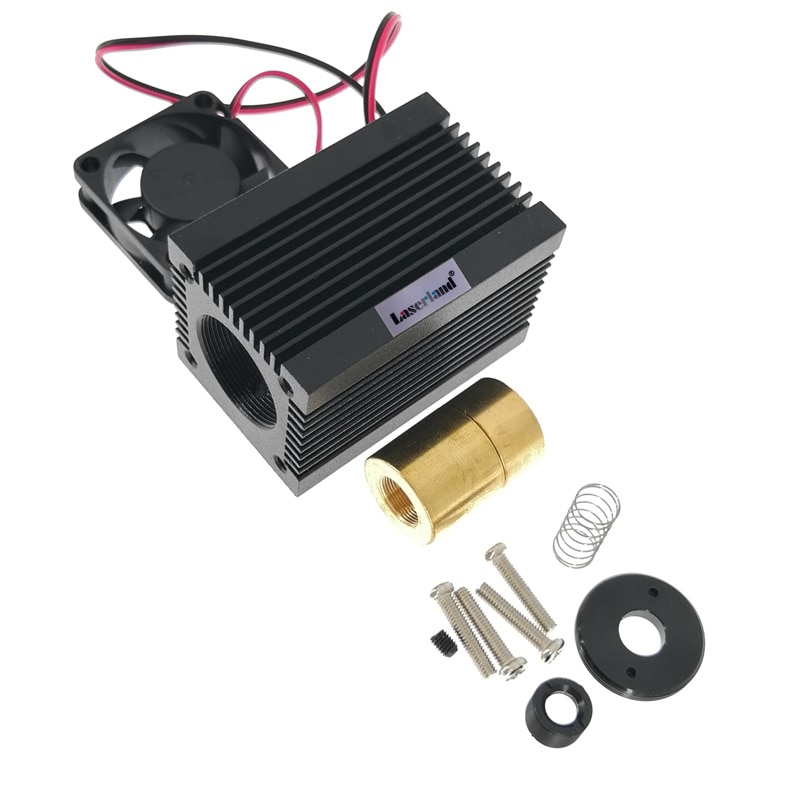

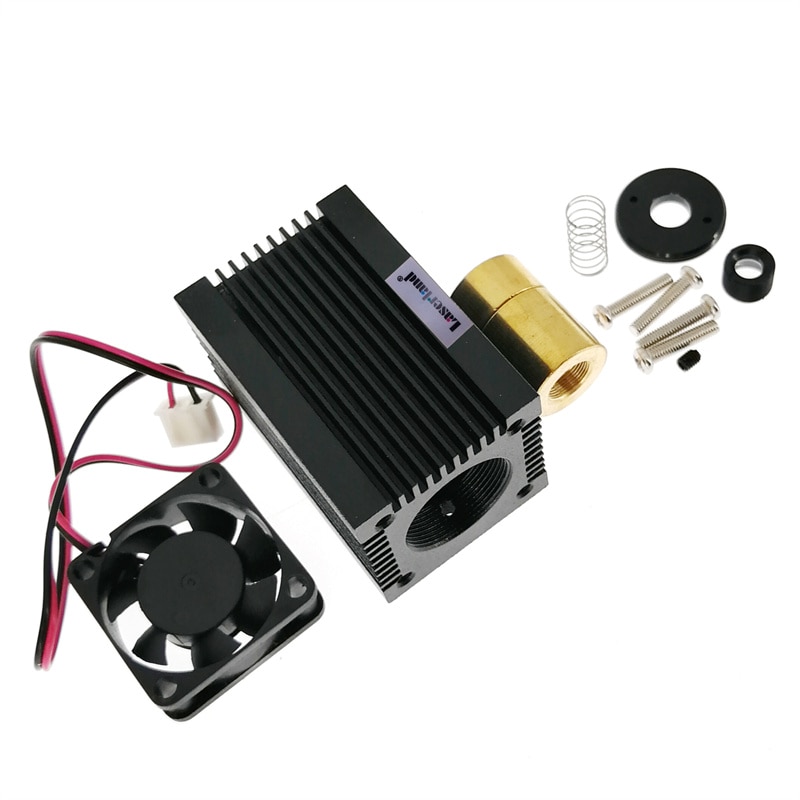

Focusable 3350 Metal Housing w Lens for 5.6mm 9.0mm Laser Diode LD w/ Fan Black
No. Size LD size Lens
#14-1 33*33*50 5.6mm plastic 200-1100nm
#14-2 33*33*50 9.0mm plastic 200-1100nm
#14-3 33*33*50 5.6mm plastic 600-700nm
#14-4 33*33*50 9.0mm plastic 600-700nm
#14-5 33*33*50 5.6mm glass 600-700nm
#14-6 33*33*50 9.0mm glass 600-700nm
#14-7 33*33*50 5.6mm glass 400-600nm
#14-8 33*33*50 9.0mm glass 400-600nm
Note
there is no coating for # 1, and #2 lens, universal use for 200-1100nm laser
# 3, #4 #5, #6, #7, #8 have AR coated lens which have high transmittance for special wavelength band.
Plastic lens can be used laser output less than 100mW
Glass lens has higher laser power resistance. it can be used for high power laser which is over 100mW
package: one pc Housing
