Description

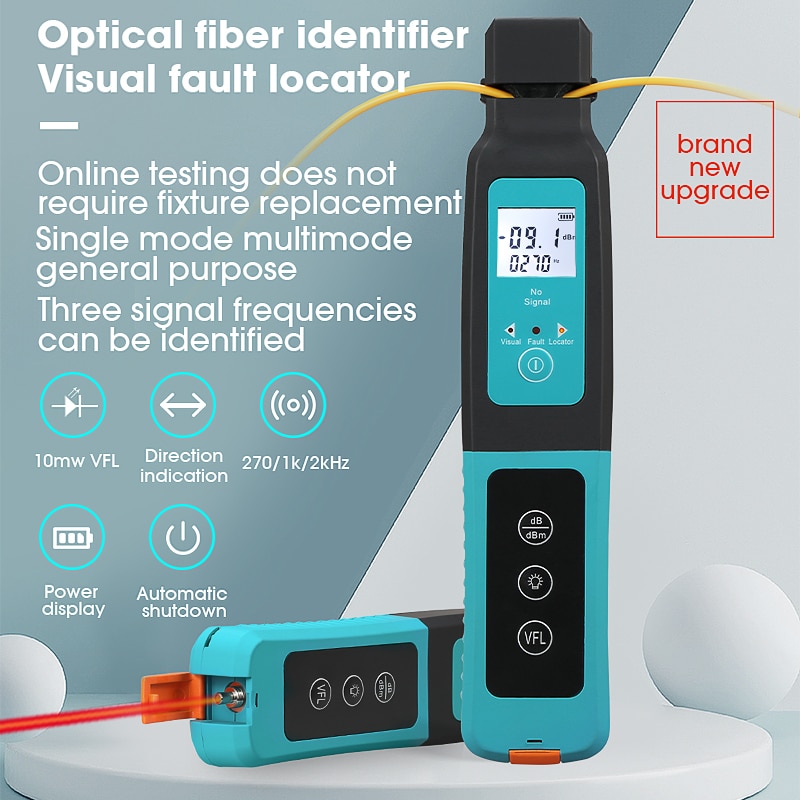

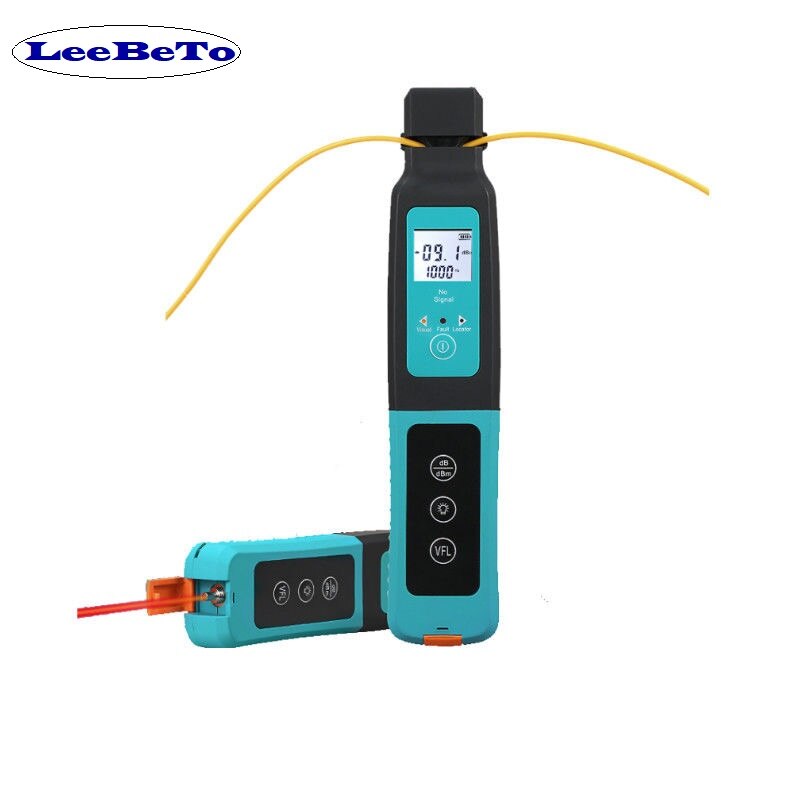

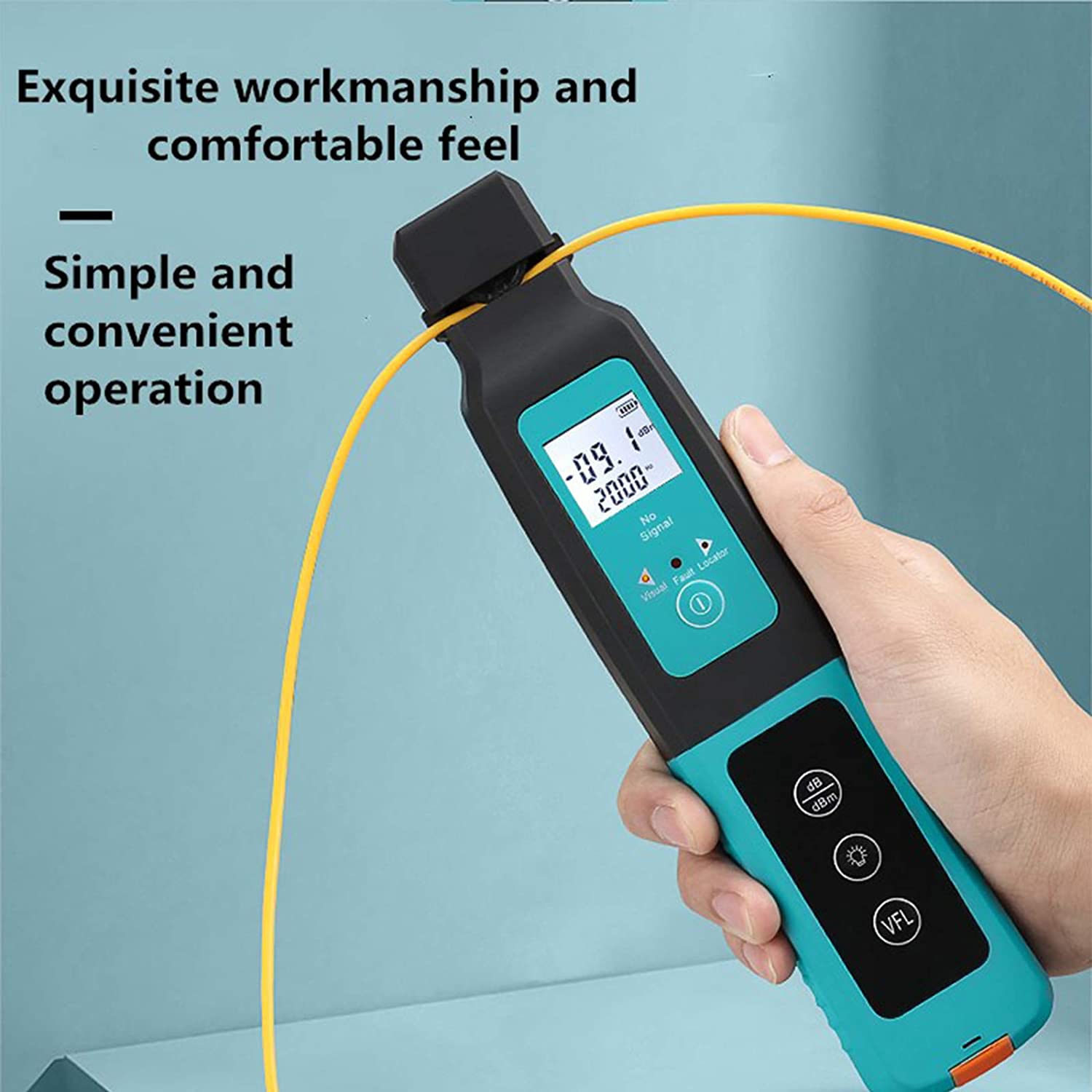

New High quality Fiber Optic Identifier Live Fiber Optical Identifier with Built in 10mw Visual Fault Locator
1.Buyer is responsible for the customs duty and local import taxes etc. The price here not includes the destination fee in buyer’s side.
2.Important: Dear Brazil customer, please leave your CPF or CNPJ number after placing the order
3.For some special countries, like Brazil, Mexico, E-packet and China Post delivery time may be around 20-90 days
Bulk purchases please contact with us,we are factory have the best price for you.
Product description:

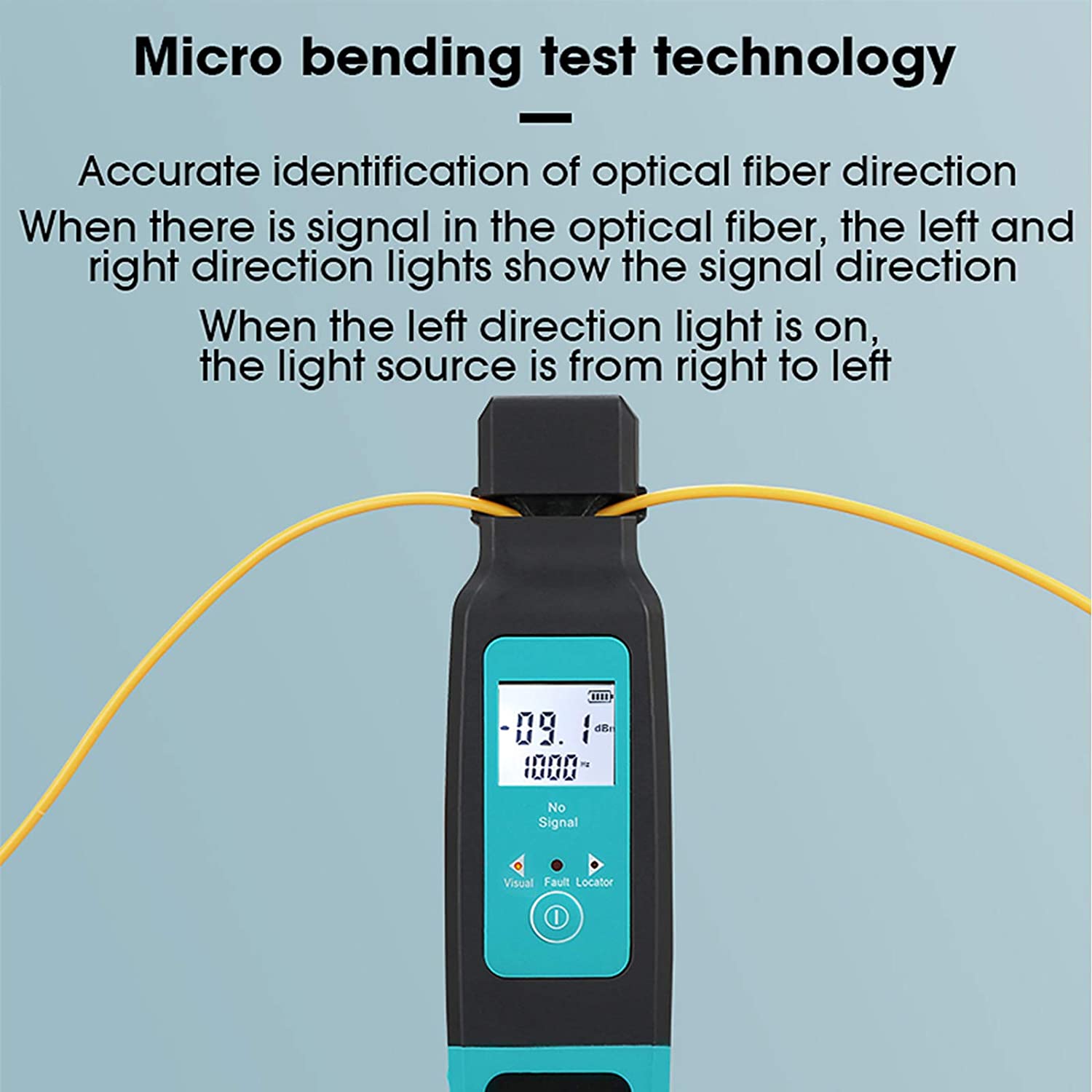

Indicate the signal directions and power in fiber,displays the relative core power.Macro bends are the use of fiber-optic bending leak out when the weak optical signal,optical signal to detect the direction and intensity.Does not damage opticla fiber,without interrupting communications.If you want to measure accurate power, please choose a power meter
Indicate the signal presence or absence(Live or dark fiber)
Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning

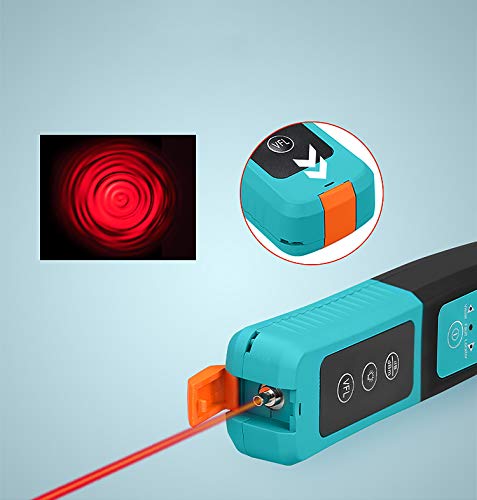

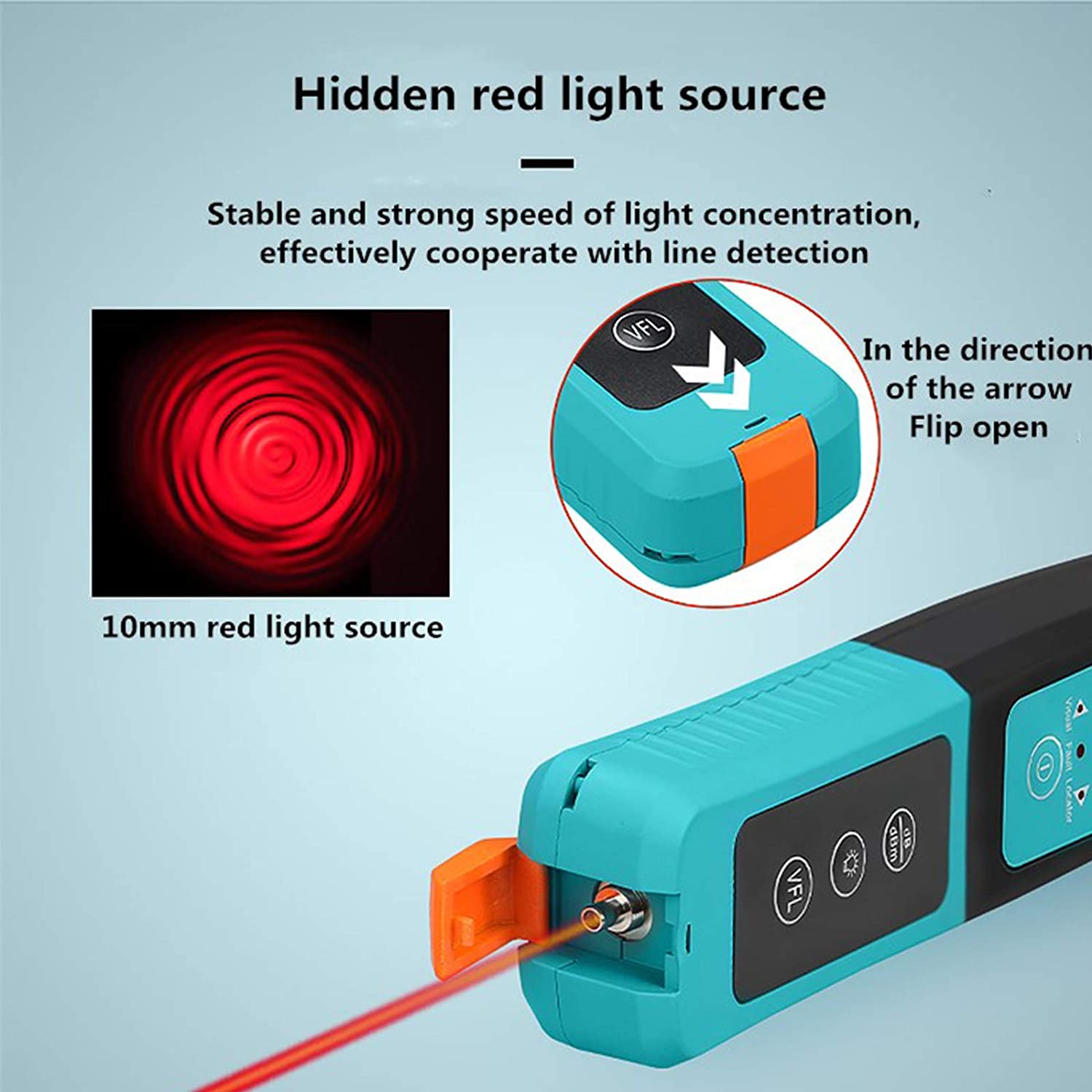

Build in VFL red light source can measure the distance is about 10-15 kilometers.
Identified Wavelength Range:800-1700 nm
Insertion Loss:1.0dB

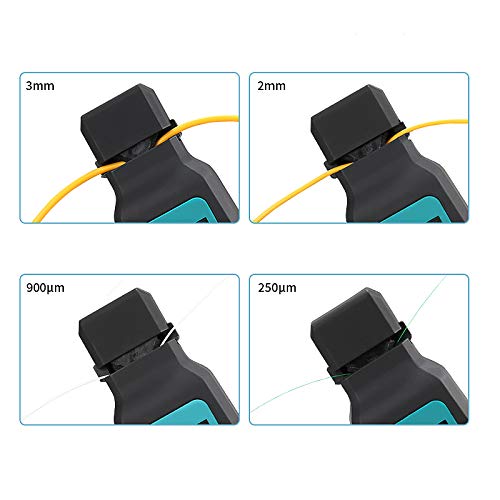

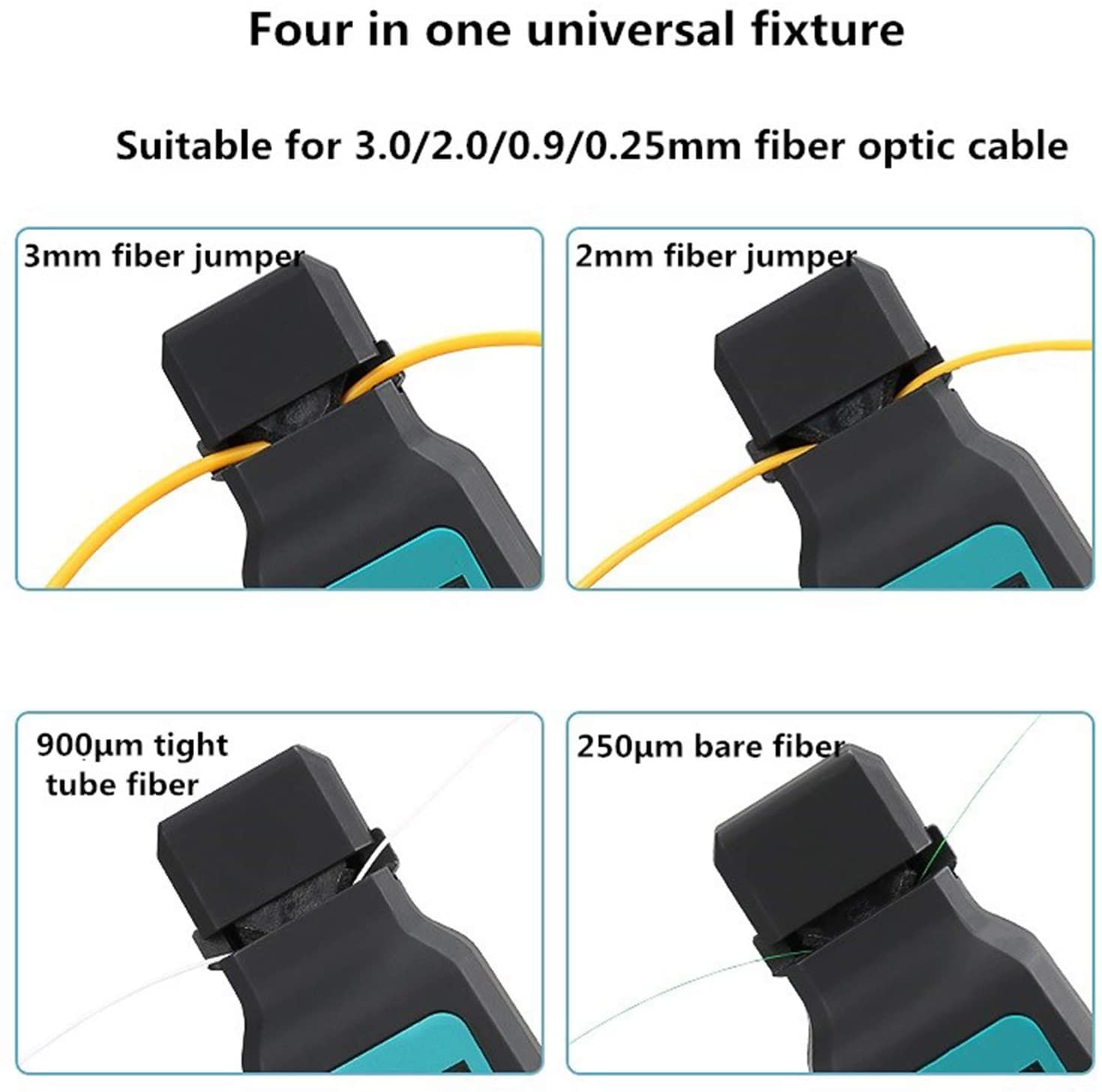

Fiber Type:＜ 3mm Fiber
Identified Signal Type:270Hz/1KHz/2KHz
Display Type:LED
Detector Type:1mm InGaAs
Minimum detection power:-35dBm(1550nm) -30dBm(1310nm)
Center Wavelength:650nm
Output Power:10mW
OperatingTemperature: 0~+50℃
Storage Temperature:-20~+60℃
Weight:200g

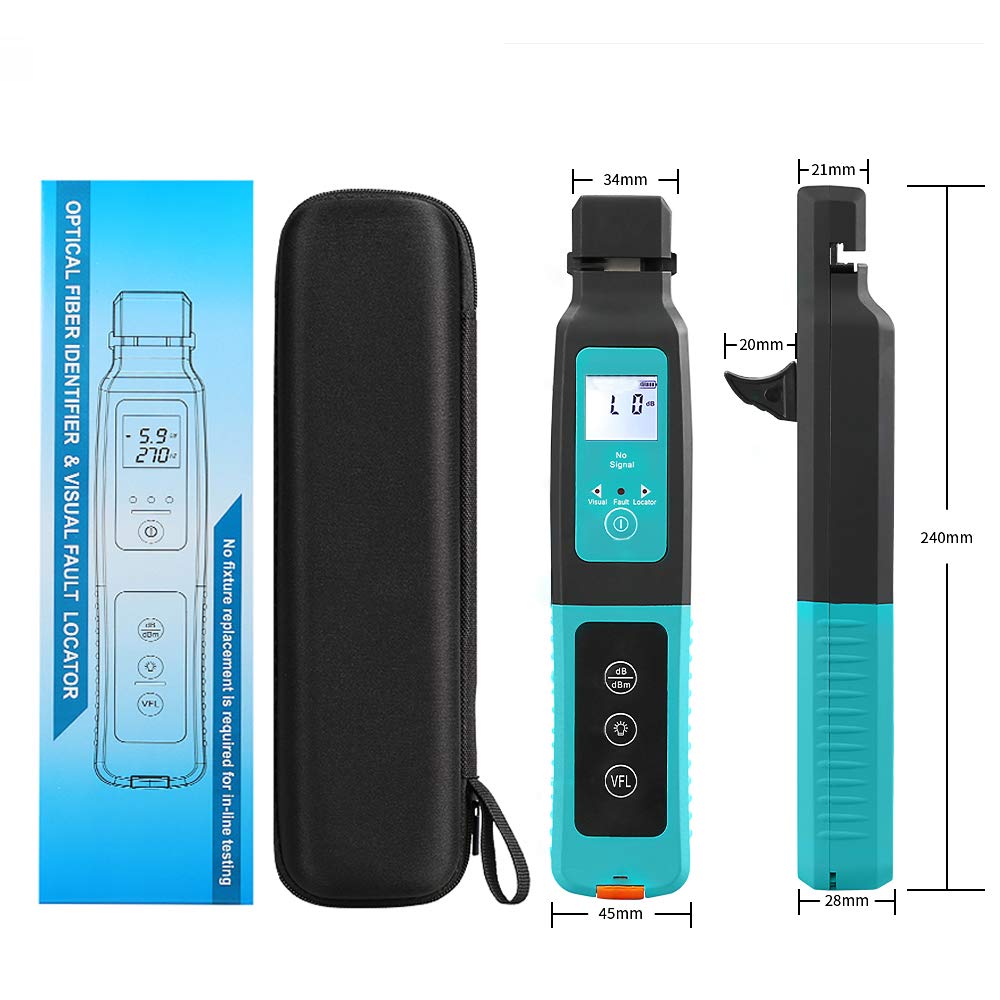

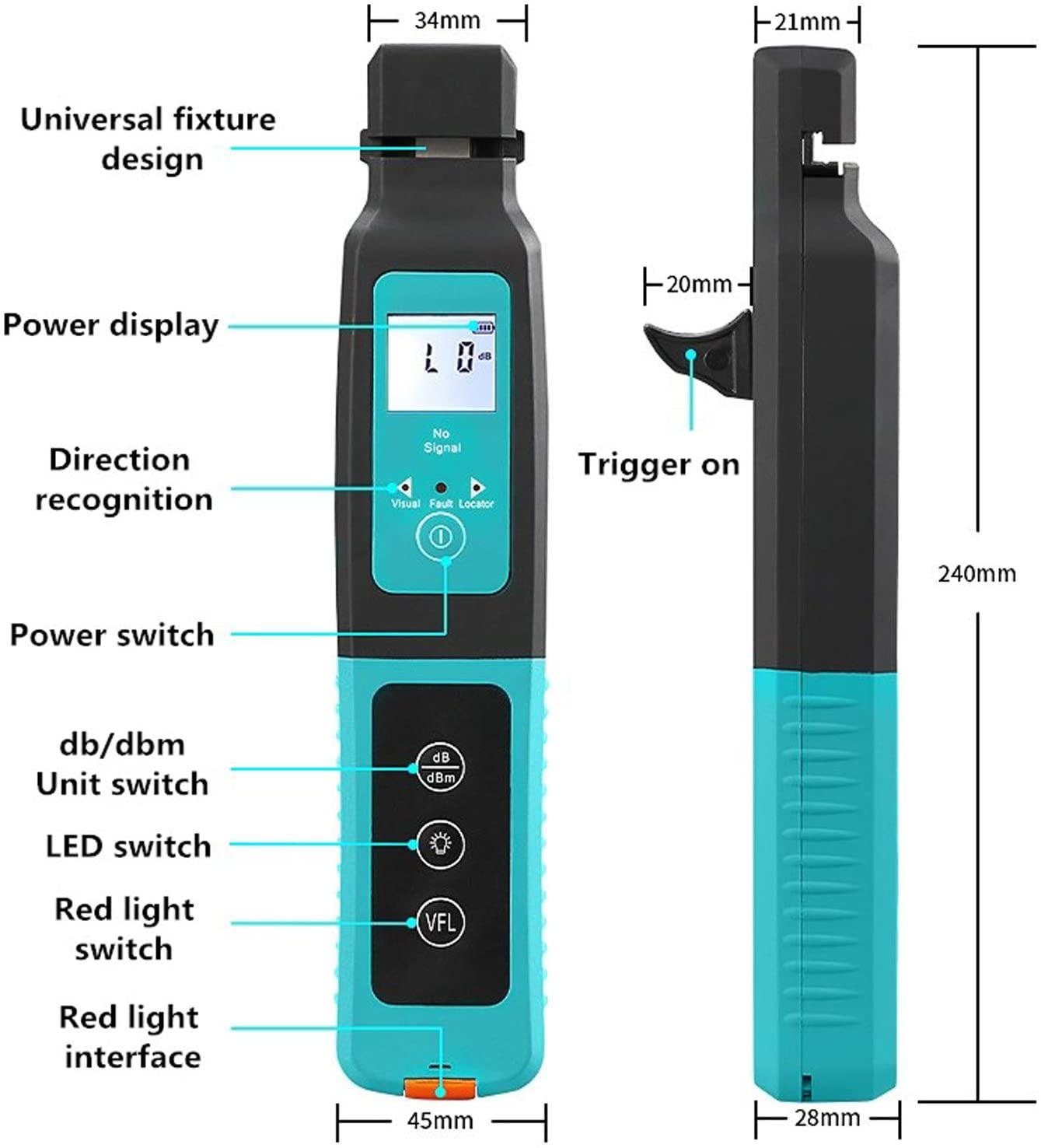

Dimension:230*43*48mm
Applications
Telecom Maintenance
CATV Maintenance
Fiber Optic lab testing
Other Fiber Optic Measurements
Packaging including:

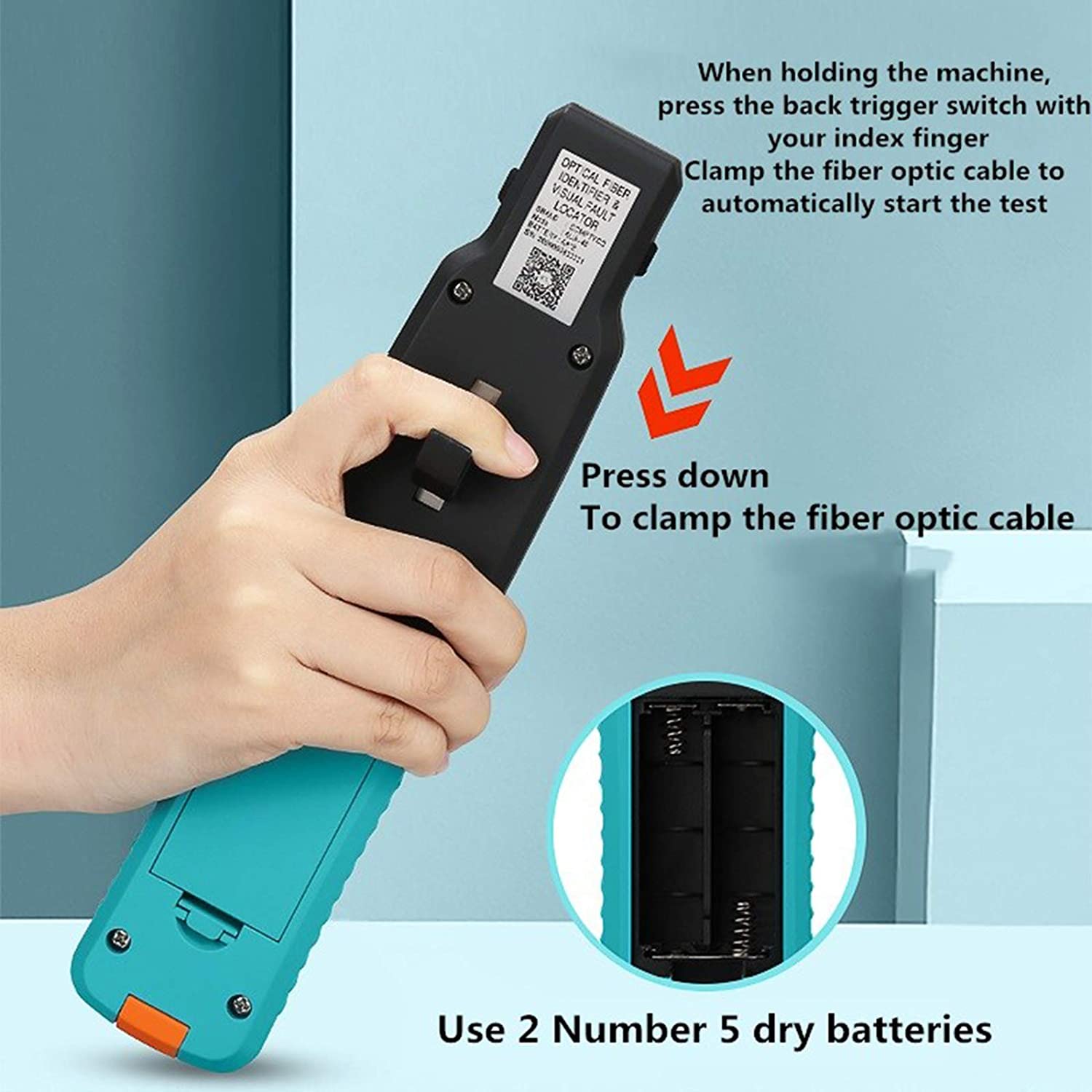

Optical Fiber Identifier, User Manual( not including battery)
